Wallenstein Equipment LXT95 Off‑Road Log Loader Trailer - Iron Elk

Wallenstein Equipment LXT95 Off‑Road Log Loader Trailer

by Wallenstein Equipment
$22,490.00 - $22,490.00
$22,490.00
$22,490.00 - $22,490.00
$22,490.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

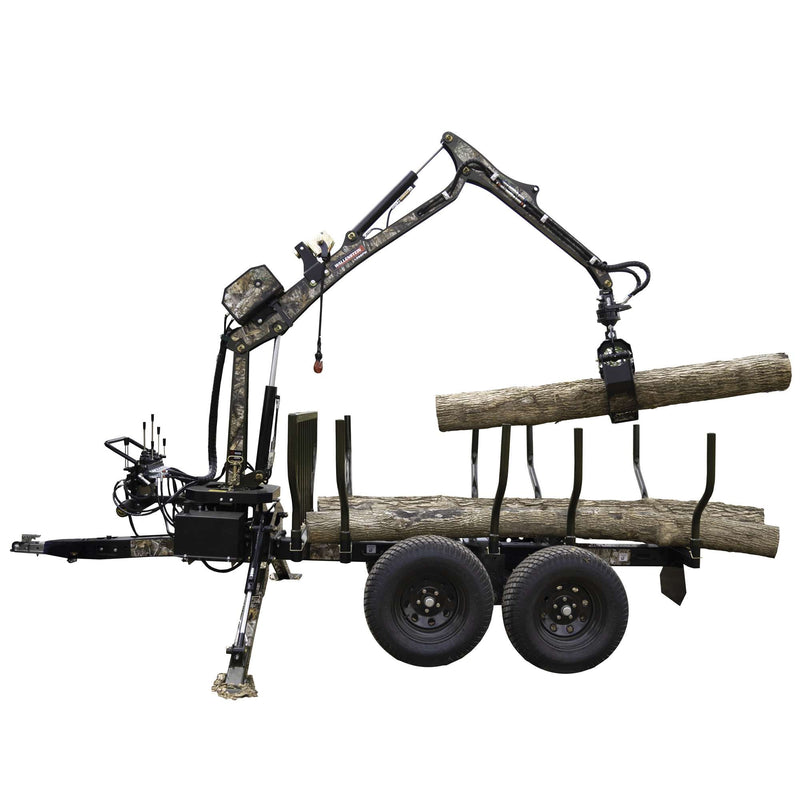

5000 lb load capacity, 800 lb lift capacity, the LXT95 log loader trailer is the ultimate equipment for larger all terrain vehicles. Add an expaneded metal flatbed and a dump box to maximize the versatility.

FEATURES

  • 270° Boom Swing Range

Gives you full access to both sides of the trailer while providing an operator safety zone.

  • 360° Hydraulic Rotation

Pick up logs in any position and orient them exactly where you want.

  • 5 Stick Control With Swivel

Pick up logs in any position and orient them exactly where you want.

  • Hydraulic Stabilizers

Easy to use hydraulic stabilizers help to prevent tipping.

  • Self Centering Bunk Posts

If bumped, the log posts naturally return to their proper position.

  • Surge Brakes

The hydraulic brakes automatically engage if the trailer begins to surge forward, such as traveling downhill or slowing.

  • Walking Beam Axle

Smoothly travel over uneven ground.

SPECIFICATIONS

Specification Details
Load Capacity 5000 lbs (2268 kg)
Lift Capacity 800 lbs (363 kg)
Engine Vanguard® 6.5 hp (203 cc)
Grapple Opening 3" - 30" (8 cm - 76 cm)
Grapple Rotation 360°
Boom Rotation 270°
Trailer Bed Length 96" (244 cm)
Sliding Axle Hydraulic
Horizontal Reach 9' 6" (290 cm)
Vertical Reach (Ground to Closed Grapple) 12' 11" (394 cm)
Stabilizer Width (Spread) 7' 5" (226 cm)
Main Boom Cylinder Diameter 2.5" (6 cm)
Dipper Cylinder Diameter 2.5" (6 cm)
Stabilizer Cylinder Diameter 2" (5 cm)
Ground Clearance 14" (36 cm)
Tires 27 x 10.5 - 15
Hitch 2" Ball
Brakes Surge
Tongue Weight (Trailer Empty with Log Loader) 200 lbs - 465 lbs (91 kg - 211 kg)
Tongue Weight (Trailer Empty with Log Loader & Power Pack) 250 lbs - 515 lbs (114 kg - 234 kg)
Trailer Weight (Empty) 1650 lbs (748 kg)
Dimensions (L x W x H) 161" x 64" x 58" (409 cm x 163 cm x 147 cm)



SHIPPING & SUPPORT

This product ships directly from Wallenstein Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
