ANBO Manufacturing
ANBO Grapple Rake Sub-Compact For Compact Tractor
$2,470.00
ANBO Manufacturing

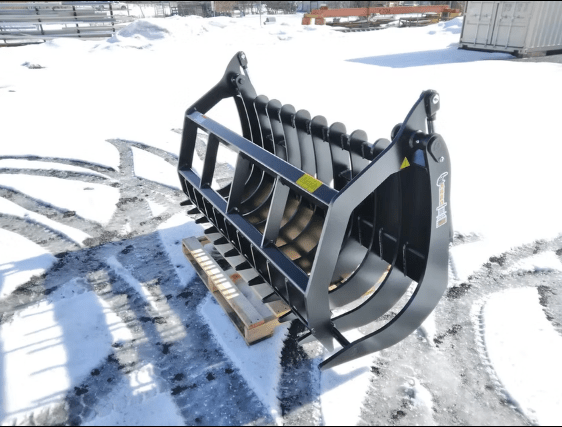

ANBO Grapple Rake 160 High Capacity For Skid Steers and Tractors
MPN: GR160-6-74
$8,350.00
Direct Shipment from Manufacturer
Engineered for peak performance, the ANBO GR160HC High Capacity Grapple Rake is built to tackle heavy clearing, demolition, and land management tasks with durability and capacity.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
Engineered for peak performance, the ANBO GR160HC High Capacity Grapple Rake is built to tackle heavy clearing, demolition, and land management tasks with durability and capacity. Crafted in the U.S.A. from premium AR400F steel, this attachment delivers strength without unnecessary weight, allowing you to move more material with precision and efficiency. Whether you're cleaning up brush, loading logs, prying out stumps, or handling debris, the GR160HC is your go-to tool for productivity and reliability.
FEATURES
-
Heavy-Duty AR400F Steel Construction
The GR160HC is built from American AR400F steel—up to 5× stronger than standard grade-36 steel—giving you superior strength and abrasion resistance while maintaining a lighter overall weight. -
High Capacity Design
Longer bottom tines, a wider closing space, and full clamping range allow you to capture more material per pass. The result: fewer trips, faster operation, and higher throughput. -
Robust Hydraulic Components
Equipped with 3″ × 10″ cylinders to deliver strong and consistent clamping power, even under tough conditions. - Optimized Tine Geometry
Uses ¾″ outer and 5⁄8″ inner AR400F steel tines, providing excellent grip, durability, and material retention without sacrificing feed-through capability. - Greaseable Pivot Points & Secure Hose Routing
All pivot points are fitted with grease zerks for easier maintenance and longevity. Hydraulic hoses are routed and protected to minimize damage risk. - Versatile Range of Widths
Available in multiple widths (74", 80", 87", 94", 100", 107", etc.), making it adaptable for various skid steers, tractors, and project scales. - Strong Performance Capacity
Designed for machines rated up to 160 HP, making it ideal for medium-duty to heavy-duty applications. - Warranty Backing
Comes standard with a two-year warranty on the unit and a three-year warranty on the cylinders, giving you peace of mind and confidence in your investment.
SPECIFICATIONS
| MPN | Tine Space | Width | Weight | Max HP | Tine Size Outer/Inner | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR160-6-74 | 6" | 74" | 1263 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-6-80 | 6" | 80" | 1346 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-6-87 | 6" | 87" | 1429 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-6-94 | 6" | 94" | 1518 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-6-100 | 6" | 100" | 1601 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-6-107 | 6" | 107" | 1684 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-8-79 | 8" | 79" | 1139 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-8-87 | 8" | 87" | 1187 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-8-96 | 8" | 96" | 1330 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-8-104 | 8" | 104" | 1424 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-12-77 | 12" | 77" | 972 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-12-89 | 12" | 89" | 1085 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-12-102 | 12" | 102" | 1205 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
| GR160-12-115 | 12" | 115" | 1319 lb | 160 hp | 3/4" : 5/8" | 57" | 3" x 10" |
