ANBO Manufacturing
ANBO Grapple Rake Sub-Compact For Compact Tractor
$2,470.00
ANBO Manufacturing

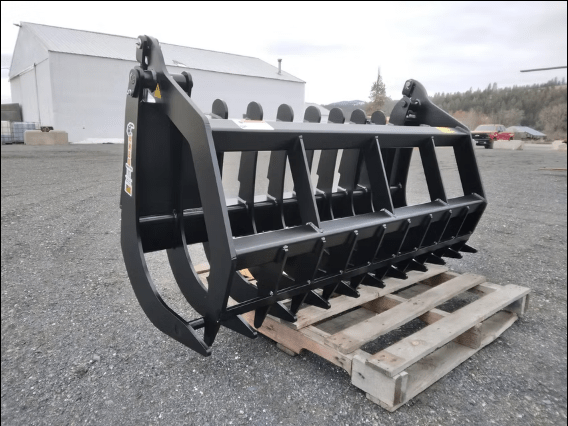

ANBO Grapple Rake 75 High Capacity For Skid Steers and Tractors
MPN: GR75HC-6-59
$5,410.00
Direct Shipment from Manufacturer
The GR75HC (High Capacity) is a beefed-up version of ANBO’s 75 HP grapple line, engineered for operators who want extra payload on their smaller machines.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
The GR75HC (High Capacity) is a beefed-up version of ANBO’s 75 HP grapple line, engineered for operators who want extra payload on their smaller machines. With longer bottom tines, a larger closed-gap volume, and a wider opening, this grapple rake excels in handling heavy brush, logs, roots, and debris while staying within the limits of smaller tractors and skid steers.
Built from AR400F steel and backed by a 2-year structural warranty (3 years on cylinders), the GR75HC delivers both strength and peace of mind.
FEATURES
-
High-Capacity Design
Longer tines and increased clearance when closed allows the GR75HC to carry more material per load than standard 75 HP grapples. -
Heavy-Duty Tines
Constructed with ½″ AR400F steel on both outer and inner tines to resist abrasion under load. -
Multiple Cylinder Options
Equipped with 2.5″ × 8″ or 3″ × 8″ hydraulic cylinders (based on width) to deliver strong clamping force. - Wide Range of Widths & Tine Spacing
Available in both 6″ and 8″ tine spacing across widths from 59″ up to 94″, giving flexibility for many machine setups and material types. -
Generous Jaw Opening
Offers a ~50″ opening to uptake large logs, brush bundles, or root masses. -
Greaseable Pivots & Protected Hoses
All pivot points include grease lubrication, and hydraulic hoses are routed securely to reduce wear and snags. -
Made in the USA with AR400F Steel
Fabricated in the U.S. from AR400F alloy — up to 5x stronger than conventional grade-36 steel. -
Warranty Coverage
Comes with a 2-year structural warranty, and a 3-year warranty on cylinders to protect your investment.
SPECIFICATIONS
| MPN | Tine Space | Width | Weight | Max HP | Tine Size (Outer : Inner) | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR75HC-6-59 | 6" | 59" | 732 lb | 75 hp | 1/2" : 1/2" | 50" | 2.5" x 8" |
| GR75HC-6-66 | 6" | 66" | 790 lb | 75 hp | 1/2" : 1/2" | 50" | 2.5" x 8" |
| GR75HC-6-72 | 6" | 72" | 852 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-6-79 | 6" | 79" | 906 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-6-85 | 6" | 85" | 960 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-6-92 | 6" | 92" | 1019 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-8-60 | 8" | 60" | 691 lb | 75 hp | 1/2" : 1/2" | 50" | 2.5" x 8" |
| GR75HC-8-69 | 8" | 66" | 754 lb | 75 hp | 1/2" : 1/2" | 50" | 2.5" x 8" |
| GR75HC-8-77 | 8" | 77" | 823 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-8-86 | 8" | 86" | 885 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-8-94 | 8" | 94" | 952 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
SHIPPING & SUPPORT
This product typically ships within 3–5 business days. Total estimated delivery time is 8–10 business days from order placement. Delivery timelines may vary during peak seasons or due to manufacturer lead times.
Have questions or need help choosing the right size or accessories?
Contact us at sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
Shipping & Delivery
Iron Elk Equipment offers free shipping on all orders over $2,500 within the contiguous United States.
Order Processing
3-5 business days handling time
In Transit
5-7 business days shipping via freight carrier
Total Estimated Delivery
8-10 business days from time of order
Depending on seasonality and availability, shipping times may vary. You will receive tracking information once your order has shipped. For questions about shipping to your area, please contact us at (307) 832-5565 or sales@ironelkequipment.com.
Warranty & Returns
All products sold by Iron Elk Equipment carry the full manufacturer warranty. Warranty terms vary by manufacturer and product. Please contact us for specific warranty details on this item.
Defective or Damaged Products
If you receive a defective or damaged product, please contact us within 48 hours of delivery at (307) 832-5565 or sales@ironelkequipment.com. We will work with the manufacturer to resolve the issue promptly.
Returns
Returns of unused, undamaged products may be accepted within 30 days of delivery. A restocking fee may apply. Please contact us before returning any item. For full details, see our Refund & Return Policy.
Questions About This Product?
Our equipment specialists are happy to help you determine if this product is right for your application.
Call Us
(307) 832-5565
Monday - Friday, 8:00 AM - 5:00 PM MST
Email Us
sales@ironelkequipment.com
We respond within 24-48 hours on business days
We can also provide custom quotes for bulk orders or special configurations.
The GR75HC (High Capacity) is a beefed-up version of ANBO’s 75 HP grapple line, engineered for operators who want extra payload on their smaller machines. With longer bottom tines, a larger closed-gap volume, and a wider opening, this grapple rake excels in handling heavy brush, logs, roots, and debris while staying within the limits of smaller tractors and skid steers.
Built from AR400F steel and backed by a 2-year structural warranty (3 years on cylinders), the GR75HC delivers both strength and peace of mind.
FEATURES
-
High-Capacity Design
Longer tines and increased clearance when closed allows the GR75HC to carry more material per load than standard 75 HP grapples. -
Heavy-Duty Tines
Constructed with ½″ AR400F steel on both outer and inner tines to resist abrasion under load. -
Multiple Cylinder Options
Equipped with 2.5″ × 8″ or 3″ × 8″ hydraulic cylinders (based on width) to deliver strong clamping force. - Wide Range of Widths & Tine Spacing
Available in both 6″ and 8″ tine spacing across widths from 59″ up to 94″, giving flexibility for many machine setups and material types. -
Generous Jaw Opening
Offers a ~50″ opening to uptake large logs, brush bundles, or root masses. -
Greaseable Pivots & Protected Hoses
All pivot points include grease lubrication, and hydraulic hoses are routed securely to reduce wear and snags. -
Made in the USA with AR400F Steel
Fabricated in the U.S. from AR400F alloy — up to 5x stronger than conventional grade-36 steel. -
Warranty Coverage
Comes with a 2-year structural warranty, and a 3-year warranty on cylinders to protect your investment.
SPECIFICATIONS
| MPN | Tine Space | Width | Weight | Max HP | Tine Size (Outer : Inner) | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR75HC-6-59 | 6" | 59" | 732 lb | 75 hp | 1/2" : 1/2" | 50" | 2.5" x 8" |
| GR75HC-6-66 | 6" | 66" | 790 lb | 75 hp | 1/2" : 1/2" | 50" | 2.5" x 8" |
| GR75HC-6-72 | 6" | 72" | 852 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-6-79 | 6" | 79" | 906 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-6-85 | 6" | 85" | 960 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-6-92 | 6" | 92" | 1019 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-8-60 | 8" | 60" | 691 lb | 75 hp | 1/2" : 1/2" | 50" | 2.5" x 8" |
| GR75HC-8-69 | 8" | 66" | 754 lb | 75 hp | 1/2" : 1/2" | 50" | 2.5" x 8" |
| GR75HC-8-77 | 8" | 77" | 823 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-8-86 | 8" | 86" | 885 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
| GR75HC-8-94 | 8" | 94" | 952 lb | 75 hp | 1/2" : 1/2" | 50" | 3" x 8" |
SHIPPING & SUPPORT
This product typically ships within 3–5 business days. Total estimated delivery time is 8–10 business days from order placement. Delivery timelines may vary during peak seasons or due to manufacturer lead times.
Have questions or need help choosing the right size or accessories?
Contact us at sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
Shipping & Delivery
Iron Elk Equipment offers free shipping on all orders over $2,500 within the contiguous United States.
Order Processing
3-5 business days handling time
In Transit
5-7 business days via freight carrier
Total Estimated Delivery
8-10 business days from order
Shipping times may vary. Contact us at (307) 832-5565 or sales@ironelkequipment.com.
Warranty & Returns
All products carry the full manufacturer warranty. Contact us for specific warranty details.
Defective or Damaged Products
Contact us within 48 hours of delivery at (307) 832-5565.
Returns
Returns accepted within 30 days. Restocking fee may apply. See our Refund Policy.
Questions About This Product?
Our equipment specialists are happy to help.
Call Us
(307) 832-5565
Mon - Fri, 8AM - 5PM MST
Email Us
sales@ironelkequipment.com
Response within 24-48 hours
