ANBO Manufacturing

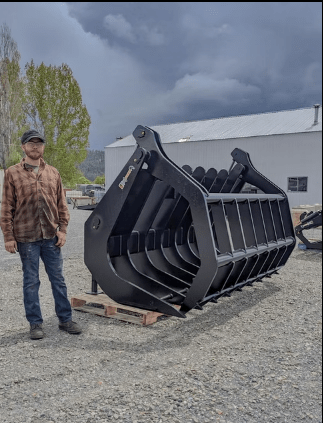

ANBO Grapple Rake 300 For Skid Steers and Tractors
MPN: GR300-8-92
$28,330.00
Direct Shipment from Manufacturer
Engineered for the heaviest land clearing, demolition, and rock work, the ANBO GR300 is the top-tier grapple rake in the lineup.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
Engineered for the heaviest land clearing, demolition, and rock work, the ANBO GR300 is the top-tier grapple rake in the lineup. Built to perform on machines up to 300 horsepower, this model combines massive structural components with premium materials to tackle demanding tasks with confidence.
FEATURES
-
Massive 1.25″ AR400F Steel Tines
Each tooth (inner & outer) runs a robust 1¼" thickness, offering extraordinary wear resistance and bending strength. -
Powerful Hydraulic Actuation (4″ × 14″ Cylinders)
Heavy-duty 4" bore × 14" stroke cylinders provide exceptional clamping force for heavy debris and root systems. -
Wide Range of Width Options
Available widths include 93", 106", 119", to match machine size and job demands. -
Wide Jaw Opening (Approx. 90")
Capable of a large 90" opening to encompass bulky loads in one go. -
Heavy Duty Build & Reinforcement
Thick cross-brace support, gusseted side plates, and boxed frame structures help resist torsion and maintain rigidity under load. -
Greaseable Pivot Points, Protected Hoses
All hinge areas are greaseable for long-term maintenance. Hydraulic hoses are routed safely to minimize exposure and risk of snagging. -
Clamshell Dual Grapple Arms
The pair of upper clamps ensure even pressure across uneven surfaces for better load security. -
Designed for 300 HP Class Use
Built to match the demands of large tractors, wheel loaders, and high-capacity skid steers. -
Made in the USA with Premium Steel
Backed by ANBO’s reputation, built in Colville, Washington, using AR400F alloy for durability.
SPECIFICATIONS
| MPN | Tine Spacing | Width | Weight | Max HP | Tine Size (Outer : Inner) | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR300-8-92 | 8" | 92" | 4637 lb | 300 hp | 1.25" : 1" | 90" | 4" x 14" |
| GR300-8-101 | 8" | 101" | 4967 lb | 300 hp | 1.25" : 1" | 90" | 4" x 14" |
| GR300-8-110 | 8" | 110" | 5297 lb | 300 hp | 1.25" : 1" | 90" | 4" x 14" |
| GR300-8-119 | 8" | 119" | 5626 lb | 300 hp | 1.25" : 1" | 90" | 4" x 14" |
| GR300-12-93 | 12" | 93" | 3988 lb | 300 hp | 1.25" : 1" | 90" | 4" x 14" |
| GR300-12-106 | 12" | 106" | 4346 lb | 300 hp | 1.25" : 1" | 90" | 4" x 14" |
| GR300-12-119 | 12" | 119" | 4711 lb | 300 hp | 1.25" : 1" | 90" | 4" x 14" |
