ANBO Manufacturing

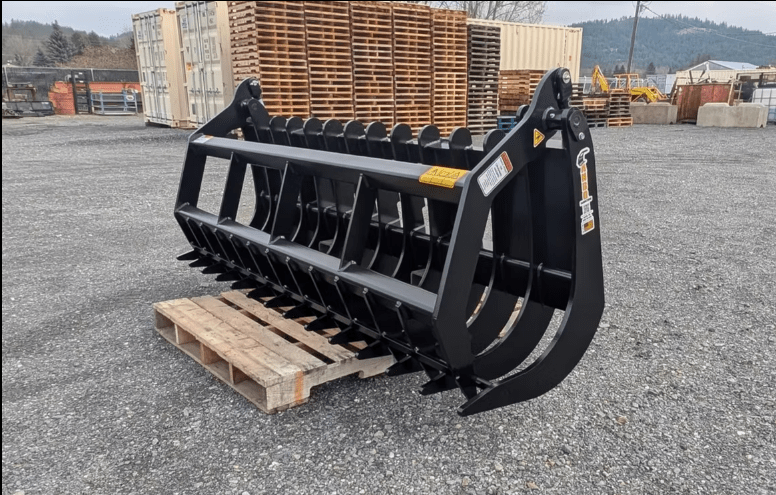

ANBO Grapple Rake 120 High Capacity For Skid Steers and Tractors
MPN: GR120HC-6-61
$6,030.00
Direct Shipment from Manufacturer
The ANBO GR120HC is designed for operators who need extra lift and carrying power from their equipment.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
The ANBO GR120HC is designed for operators who need extra lift and carrying power from their equipment. Built specifically for machines rated 120 horsepower or less, it is structurally similar to the GR75HC but built with thicker tines and increased capacity for more demanding clearing, rock work, and debris handling.
With extended bottom tines and a larger closed-gap volume, the GR120HC lets you haul more material per pass. Whether you’re pushing brush, moving logs, removing roots, or clearing rocks, this rugged grapple offers efficiency and durability in one package.
FEATURES
-
High-Capacity Design
Longer lower tines and a larger internal volume allow you to carry more material in each load. -
Thicker Tine Construction
Uses ¾″ outer and 5⁄8″ inner AR400F steel tines for improved strength and wear resistance over standard models. -
Heavy-Duty Hydraulic Cylinders
Equipped with 2.5″ × 8″ or 3″ × 8″ cylinders (depending on width) to deliver strong clamping forces. -
Generous Opening (~50″)
The grapple opens wide to easily ingest brush, logs, and debris without repeated passes. -
Wide Range of Widths & Tine Spacing Options
Available in 6″ or 8″ tine spacing, across multiple widths (61", 67", 74", 80", 87", 94" etc.) to match your machine and job. -
Greaseable Pivot Points
All pin and hinge joints include grease fittings for ease of maintenance and longer life. -
Protected Hose Routing
Hydraulic hoses are routed securely to reduce snagging and damage in rugged terrain. -
Made with U.S. AR400F Steel
Fabricated in the U.S. using AR400F alloy, which offers up to 5× greater strength than standard grade steel. -
Warranty Coverage
Comes with a 2-year structural warranty and a 3-year warranty for hydraulic cylinders.
SPECIFICATIONS
| MPN | Tine Space | Width | Weight | Max HP | Tine Size Outer:Inner | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR120HC-6-61 | 6" | 61" | 868 lb | 120 hp | 3/4" : 5/8" | 50" | 2.5" x 8" |
| GR120HC-6-67 | 6" | 67" | 938 lb | 120 hp | 3/4" : 5/8" | 50" | 2.5" x 8" |
| GR120HC-6-74 | 6" | 74" | 1010 lb | 120 hp | 3/4" : 5/8" | 50" | 3" x 8" |
| GR120HC-6-80 | 6" | 80" | 1076 lb | 120 hp | 3/4" : 5/8" | 50" | 3" x 8" |
| GR120HC-6-87 | 6" | 87" | 1141 lb | 120 hp | 3/4" : 5/8" | 50" | 3" x 8" |
| GR120HC-6-94 | 6" | 94" | 1211 lb | 120 hp | 3/4" : 5/8" | 50" | 3" x 8" |
| GR120HC-8-61 | 8" | 61" | 824 lb | 120 hp | 3/4" : 5/8" | 50" | 2.5" x 8" |
| GR120HC-8-70 | 8" | 70" | 903 lb | 120 hp | 3/4" : 5/8" | 50" | 2.5" x 8" |
| GR120HC-8-79 | 8" | 79" | 969 lb | 120 hp | 3/4" : 5/8" | 50" | 3" x 8" |
| GR120HC-8-87 | 8" | 87" | 1043 lb | 120 hp | 3/4" : 5/8" | 50" | 3" x 8" |
| GR120HC-8-96 | 8" | 96" | 1123 lb | 120 hp | 3/4" : 5/8" | 50" | 3" x 8" |
SHIPPING & SUPPORT
This product typically ships within 3–5 business days. Total estimated delivery time is 8–10 business days from order placement. Delivery timelines may vary during peak seasons or due to manufacturer lead times.
Have questions or need help choosing the right size or accessories?
Contact us at sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
Shipping & Delivery
Iron Elk Equipment offers free shipping on all orders over $2,500 within the contiguous United States.
Order Processing
3-5 business days handling time
In Transit
5-7 business days shipping via freight carrier
Total Estimated Delivery
8-10 business days from time of order
Depending on seasonality and availability, shipping times may vary. You will receive tracking information once your order has shipped. For questions about shipping to your area, please contact us at (307) 832-5565 or sales@ironelkequipment.com.
Warranty & Returns
All products sold by Iron Elk Equipment carry the full manufacturer warranty. Warranty terms vary by manufacturer and product. Please contact us for specific warranty details on this item.
Defective or Damaged Products
If you receive a defective or damaged product, please contact us within 48 hours of delivery at (307) 832-5565 or sales@ironelkequipment.com. We will work with the manufacturer to resolve the issue promptly.
Returns
Returns of unused, undamaged products may be accepted within 30 days of delivery. A restocking fee may apply. Please contact us before returning any item. For full details, see our Refund & Return Policy.
Questions About This Product?
Our equipment specialists are happy to help you determine if this product is right for your application.
Call Us
(307) 832-5565
Monday - Friday, 8:00 AM - 5:00 PM MST
Email Us
sales@ironelkequipment.com
We respond within 24-48 hours on business days
We can also provide custom quotes for bulk orders or special configurations.
