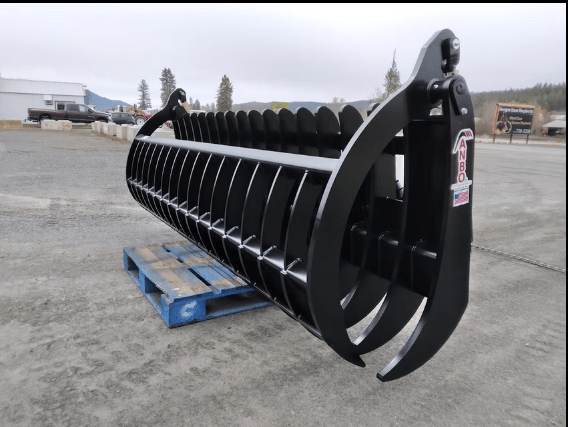

ANBO Grapple Rake 180 For Skid Steers and Tractors
MPN: GR180-6-68
$9,990.00
Direct Shipment from Manufacturer
The ANBO GR180 Grapple Rake is engineered to deliver rugged performance and durability for mid-to-large machines up to 180 horsepower.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
The ANBO GR180 Grapple Rake is engineered to deliver rugged performance and durability for mid-to-large machines up to 180 horsepower. With thicker tines, a robust hydraulic system, and AR400F steel construction, this model is built to handle demanding jobs like clearing brush, removing rocks, digging roots, and debris management.
FEATURES
-
Constructed from AR400F Steel
Built with high-grade AR400F steel for superior wear resistance and structural strength, making it more durable than standard steel alternatives. -
Thick ¾″ Tines (Outer & Inner)
Both outer and inner tines are ¾″, giving extra rigidity and strength when handling heavy or abrasive loads. -
Powerful Hydraulic System (3.5″ × 10″ Cylinders)
Equipped with 3.5″ × 10″ hydraulic cylinders for strong clamping force and reliable operation under load. -
Clamshell Grapple Design
Dual top grapples operate to securely clamp irregular or uneven loads, improving grip and stability. -
Greaseable Pivot Points & Protected Hose Routing
All hinge points are serviceable with grease fittings. Hydraulic hoses are routed internally or in protected paths to reduce snagging. -
Short-Tine / Root-Rake Style
Designed similarly to a root rake, it allows digging, raking, and clearing operations all in one tool. -
Compatible with Machines up to 180 HP
Rated to perform reliably on machines within the 180 HP class. -
Warranty Support
Comes with a 2-year general warranty and a 3-year warranty on the cylinders for added confidence.
SPECIFICATIONS
| MPN | Tine Spacing | Width | Weight | Max HP | Tine Size (Outer : Inner) | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR180-6-68 | 6" | 68" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-6-75 | 6" | 75" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-6-82 | 6" | 82" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-6-89 | 6" | 89" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-6-95 | 6" | 95" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-6-102 | 6" | 102" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-6-109 | 6" | 109" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-6-116 | 6" | 116" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-8-88 | 8" | 88" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-8-97 | 8" | 97" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-8-106 | 8" | 106" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-8-115 | 8" | 115" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-12-77 | 12" | 77" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-12 | 12" | 89" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-12 | 12" | 102" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
| GR180-12-116 | 12" | 116" | – | 180 hp | 3/4" : 3/4" | 58" | 3.5" x 10" |
