ANBO Manufacturing

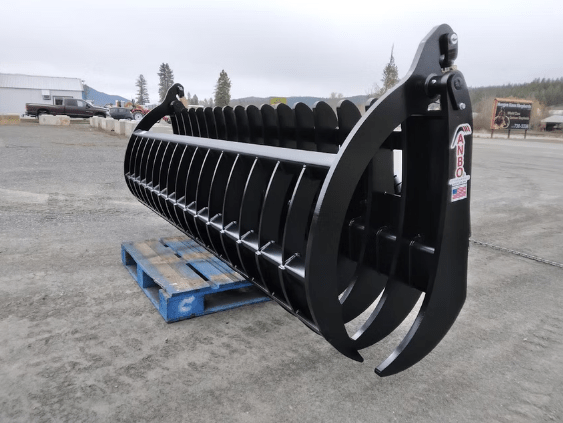

ANBO Grapple Rake 200 For Skid Steers and Tractors
MPN: GR200-6-71
$10,790.00
Direct Shipment from Manufacturer
Built for rugged performance, the ANBO GR200 Grapple Rake is a top-tier choice for contractors, landowners, and forestry operations needing maximum strength and capacity.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
Built for rugged performance, the ANBO GR200 Grapple Rake is a top-tier choice for contractors, landowners, and forestry operations needing maximum strength and capacity. Rated for machines up to 200 horsepower, this model features thick AR400F steel tines, powerful hydraulics, and a robust frame to handle even the toughest clearing, rock work, and root removal tasks.
FEATURES
-
Full AR400F Steel Construction
Both tines and structural components use premium AR400F alloy steel—giving superiority in wear resistance and strength over ordinary steel grades. -
1″ Outer & Inner Tines (High-Capacity Version)
Some variants offer 1-inch thick outer and inner tines for extremely demanding loading and abrasion environments. -
3.5″ × 10″ Hydraulic Cylinders
Heavy-duty cylinders supply strong clamping force for dense loads, root balls, and large debris. -
Clamshell Dual Grapple Design
Dual upper grapple arms clamp loads evenly, improving grip on uneven or irregular shapes while reducing shift during transport. -
Wide Jaw Opening (58 Inches)
A wide 58" opening accommodates large logs, wide brush, and bulky debris. -
Greaseable Pivot Points & Hose Routing Protection
All hinge and pivot pins are greaseable for long-term performance. Hydraulic hoses are protected and routed to minimize wear and snagging. -
Welded Cross-Bar Bracing
Reinforcing cross members help maintain structural stiffness and reduce flex under load. -
Heavy Load Capacity & Rated for 200 HP Machines
Configured for high-powered equipment, making it suitable for larger tractors, loaders, or heavy skid steers.
SPECIFICATIONS
| MPN | Tine Spacing | Width | Weight | Max HP | Tine Size (Outer : Inner) | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR200-6-71 | 6" | 71" | 1645 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-6-78 | 6" | 78" | 1792 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-6-85 | 6" | 85" | 1861 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-6-92 | 6" | 92" | 1970 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-6-99 | 6" | 99" | 2078 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-6-106 | 6" | 106" | 2186 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-6-113 | 6" | 113" | 2294 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-6-120 | 6" | 120" | 2402 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-8-91 | 8" | 91" | 1739 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-8-100 | 8" | 100" | 1857 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-8-109 | 8" | 109" | 1976 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-8-118 | 8" | 118" | 2094 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-12-79 | 12" | 79" | 1389 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-12-92 | 12" | 92" | 1530 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-12-105 | 12" | 105" | 1671 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
| GR200-12-118 | 12" | 118" | 1812 lb | 200 hp | 1" : 1" | 58" | 3.5" x 10" |
