ANBO Manufacturing

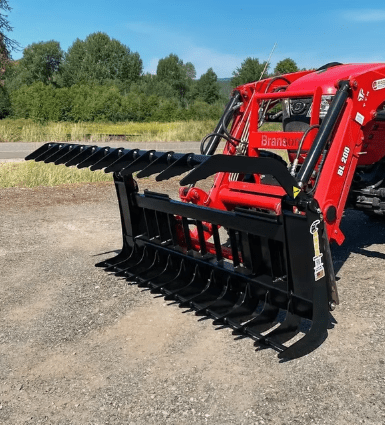

ANBO Grapple Rake 200 High Capacity For Skid Steers and Tractors
$12,340.00
ANBO Manufacturing
ANBO Grapple Rake Sub-Compact For Compact Tractor
MPN: GRSC-5-32
$2,470.00
Direct Shipment from Manufacturer
When you need heavy-duty performance in a compact package, the ANBO GRSC Sub-Compact Grapple Rake delivers.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
When you need heavy-duty performance in a compact package, the ANBO GRSC Sub-Compact Grapple Rake delivers. Designed for machines under 25 horsepower, this rugged grapple brings strength, versatility, and precision in a size that fits compact tractors, mini skid steers, and small loaders. Built in the U.S.A. from AR400F steel, the GRSC offers the durability of full-size grapples without overburdening smaller machines.
Use it for clearing brush, moving rocks, digging out roots, loading debris, and more — the GRSC is a multipurpose tool that enhances efficiency across landscaping, property maintenance, and light construction work.
FEATURES
-
Purpose-built for Small Machines (< 25 HP)
The GRSC is engineered specifically for compact tractors, mini skid steers, and light equipment, making it an ideal solution for smaller operations. -
AR400F Steel Construction
Made from AR400F high-strength, wear-resistant steel (5× stronger than grade-36), offering excellent durability without excessive weight. -
Rounded Tines + Rake Bar Design
The GRSC uses rounded tine profiles combined with a rake bar to reduce bending stress and improve clean-through performance. -
Clamshell Style Operation
Dual-clamp design (clamshell) allows for effective grasping and digging, making tasks like root removal, brush handling, and material sorting easier. -
Greaseable Pivot Points & Secure Hose Routing
All hinge points come with grease fittings for easy maintenance. Hydraulic hoses are routed and protected to minimize wear and risk of damage. -
Compact Spec Options
-
Uses 2" × 6" cylinders
-
Tine thickness: ¼" outer : ¼" inner steel
-
Opening stroke approximately 33"
-
Available in a variety of widths (e.g. 32", 37", 42", 48", 53", 58", 63", 69")
-
Weight ranges from ~190 lb to ~297 lb depending on width
-
-
Warranty Backing
Comes with a 2-year structural warranty plus a 3-year warranty on the cylinders. -
Made in the USA
Crafted in Colville, Washington, with rigorous standards to ensure reliability and longevity.
SPECIFICATIONS
| MPN | Tine Space | Width | Weight | Max HP | Tine Size Outer/Inner | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GRSC-5-32 | 5" | 32" | 190 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
| GRSC-5-37 | 5" | 37" | 203 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
| GRSC-5-42 | 5" | 42" | 216 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
| GRSC-5-48 | 5" | 48" | 230 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
| GRSC-5-53 | 5" | 53" | 259 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
| GRSC-5-58 | 5" | 58" | 272 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
| GRSC-5-63 | 5" | 63" | 285 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
| GRSC-5-69 | 5" | 69" | 297 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
| GRSC-10-42 | 10" | 42" | 200 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
| GRSC-10-53 | 10" | 53" | 239 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
| GRSC-10-63 | 10" | 63" | 260 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
| GRSC-10-74 | 10" | 74" | 279 lb | 25 hp | 1/4" : 1/4" | 33" | 2" x 6" |
