Wallenstein Equipment

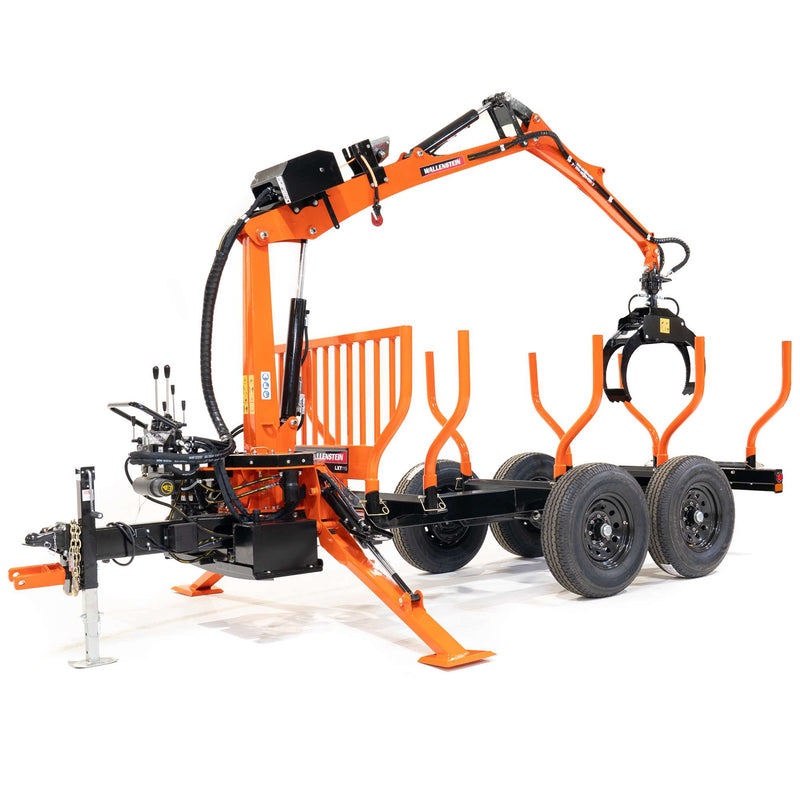

Wallenstein Equipment LXT115 Highway Log Loader Trailer
MPN: LXT115-1
$27,150.00
Direct Shipment from Manufacturer
11500 lb load capacity, 1200 lb lift capacity, the LXT115 log loader trailer is the ultimate equipment for compact tractors and full size pickup trucks.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
11500 lb load capacity, 1200 lb lift capacity, the LXT115 log loader trailer is the ultimate equipment for compact tractors and full size pickup trucks. Add an expaneded metal flatbed and a dump box to maximize the versatility.
FEATURES
-
270° Boom Swing Range
Gives you full access to both sides of the trailer while providing an operator safety zone.
-
360° Hydraulic Rotation
Pick up logs in any position and orient them exactly where you want.
-
5 Stick Control With Swivel
Pick up logs in any position and orient them exactly where you want.
-
Electric Brakes
Go easy on your vehicle with electric brakes.
-
Highway Towable
Transport your unit with hitch, safety chains, highway tires, and full trailer lighting.
-
Hydraulic Stabilizers
Easy to use hydraulic stabilizers help to prevent tipping.
-
Self Centering Bunk Posts
If bumped, the log posts naturally return to their proper position.
-
Walking Beam Axle
Smoothly travel over uneven ground.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Load Capacity | 11,500 lbs (5,216 kg) |
| Lift Capacity | 1,200 lbs (544 kg) |
| Engine | Vanguard® 10 hp (305 cc) |
| Grapple Opening | 3" - 40" (8 cm - 102 cm) |
| Grapple Rotation | 360° |
| Boom Rotation | 270° |
| Trailer Bed Length | 132" (335 cm) |
| Horizontal Reach | 11' 6" (351 cm) |
| Vertical Reach (Ground to Closed Grapple) | 15' 5" (470 cm) |
| Stabilizer Width (Spread) | 8' 11" (272 cm) |
| Main Boom Cylinder Diameter | 3" (8 cm) |
| Dipper Cylinder Diameter | 2.5" (6 cm) |
| Stabilizer Cylinder Diameter | 2" (5 cm) |
| Ground Clearance | 17" (43 cm) |
| Tires | ST235-80R16 LRE |
| Hitch | 2-5/16" Ball |
| Brakes | Electric |
| Tongue Weight (Trailer Empty with Log Loader) | 480 lbs (218 kg) |
| Tongue Weight (Trailer Empty with Log Loader & Power Pack) | 555 lbs (252 kg) |
| Trailer Weight (Empty) | 2,470 lbs (1,120 kg) |
| Dimensions (L x W x H) | 198" x 68" x 60" (503 cm x 173 cm x 152 cm) |
| Minimum Tow Vehicle Requirement | 3/4 Ton |
SHIPPING & SUPPORT
This product typically ships within 3–5 business days. Total estimated delivery time is 8–10 business days from order placement. Delivery timelines may vary during peak seasons or due to manufacturer lead times.
Have questions or need help choosing the right size or accessories?
Contact us at sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
Shipping & Delivery
Iron Elk Equipment offers free shipping on all orders over $2,500 within the contiguous United States.
Order Processing
3-5 business days handling time
In Transit
5-7 business days shipping via freight carrier
Total Estimated Delivery
8-10 business days from time of order
Depending on seasonality and availability, shipping times may vary. You will receive tracking information once your order has shipped. For questions about shipping to your area, please contact us at (307) 832-5565 or sales@ironelkequipment.com.
Warranty & Returns
All products sold by Iron Elk Equipment carry the full manufacturer warranty. Warranty terms vary by manufacturer and product. Please contact us for specific warranty details on this item.
Defective or Damaged Products
If you receive a defective or damaged product, please contact us within 48 hours of delivery at (307) 832-5565 or sales@ironelkequipment.com. We will work with the manufacturer to resolve the issue promptly.
Returns
Returns of unused, undamaged products may be accepted within 30 days of delivery. A restocking fee may apply. Please contact us before returning any item. For full details, see our Refund & Return Policy.
Questions About This Product?
Our equipment specialists are happy to help you determine if this product is right for your application.
Call Us
(307) 832-5565
Monday - Friday, 8:00 AM - 5:00 PM MST
Email Us
sales@ironelkequipment.com
We respond within 24-48 hours on business days
We can also provide custom quotes for bulk orders or special configurations.
11500 lb load capacity, 1200 lb lift capacity, the LXT115 log loader trailer is the ultimate equipment for compact tractors and full size pickup trucks. Add an expaneded metal flatbed and a dump box to maximize the versatility.
FEATURES
-
270° Boom Swing Range
Gives you full access to both sides of the trailer while providing an operator safety zone.
-
360° Hydraulic Rotation
Pick up logs in any position and orient them exactly where you want.
-
5 Stick Control With Swivel
Pick up logs in any position and orient them exactly where you want.
-
Electric Brakes
Go easy on your vehicle with electric brakes.
-
Highway Towable
Transport your unit with hitch, safety chains, highway tires, and full trailer lighting.
-
Hydraulic Stabilizers
Easy to use hydraulic stabilizers help to prevent tipping.
-
Self Centering Bunk Posts
If bumped, the log posts naturally return to their proper position.
-
Walking Beam Axle
Smoothly travel over uneven ground.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Load Capacity | 11,500 lbs (5,216 kg) |
| Lift Capacity | 1,200 lbs (544 kg) |
| Engine | Vanguard® 10 hp (305 cc) |
| Grapple Opening | 3" - 40" (8 cm - 102 cm) |
| Grapple Rotation | 360° |
| Boom Rotation | 270° |
| Trailer Bed Length | 132" (335 cm) |
| Horizontal Reach | 11' 6" (351 cm) |
| Vertical Reach (Ground to Closed Grapple) | 15' 5" (470 cm) |
| Stabilizer Width (Spread) | 8' 11" (272 cm) |
| Main Boom Cylinder Diameter | 3" (8 cm) |
| Dipper Cylinder Diameter | 2.5" (6 cm) |
| Stabilizer Cylinder Diameter | 2" (5 cm) |
| Ground Clearance | 17" (43 cm) |
| Tires | ST235-80R16 LRE |
| Hitch | 2-5/16" Ball |
| Brakes | Electric |
| Tongue Weight (Trailer Empty with Log Loader) | 480 lbs (218 kg) |
| Tongue Weight (Trailer Empty with Log Loader & Power Pack) | 555 lbs (252 kg) |
| Trailer Weight (Empty) | 2,470 lbs (1,120 kg) |
| Dimensions (L x W x H) | 198" x 68" x 60" (503 cm x 173 cm x 152 cm) |
| Minimum Tow Vehicle Requirement | 3/4 Ton |
SHIPPING & SUPPORT
This product typically ships within 3–5 business days. Total estimated delivery time is 8–10 business days from order placement. Delivery timelines may vary during peak seasons or due to manufacturer lead times.
Have questions or need help choosing the right size or accessories?
Contact us at sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
Shipping & Delivery
Iron Elk Equipment offers free shipping on all orders over $2,500 within the contiguous United States.
Order Processing
3-5 business days handling time
In Transit
5-7 business days via freight carrier
Total Estimated Delivery
8-10 business days from order
Shipping times may vary. Contact us at (307) 832-5565 or sales@ironelkequipment.com.
Warranty & Returns
All products carry the full manufacturer warranty. Contact us for specific warranty details.
Defective or Damaged Products
Contact us within 48 hours of delivery at (307) 832-5565.
Returns
Returns accepted within 30 days. Restocking fee may apply. See our Refund Policy.
Questions About This Product?
Our equipment specialists are happy to help.
Call Us
(307) 832-5565
Mon - Fri, 8AM - 5PM MST
Email Us
sales@ironelkequipment.com
Response within 24-48 hours
