Wallenstein Equipment

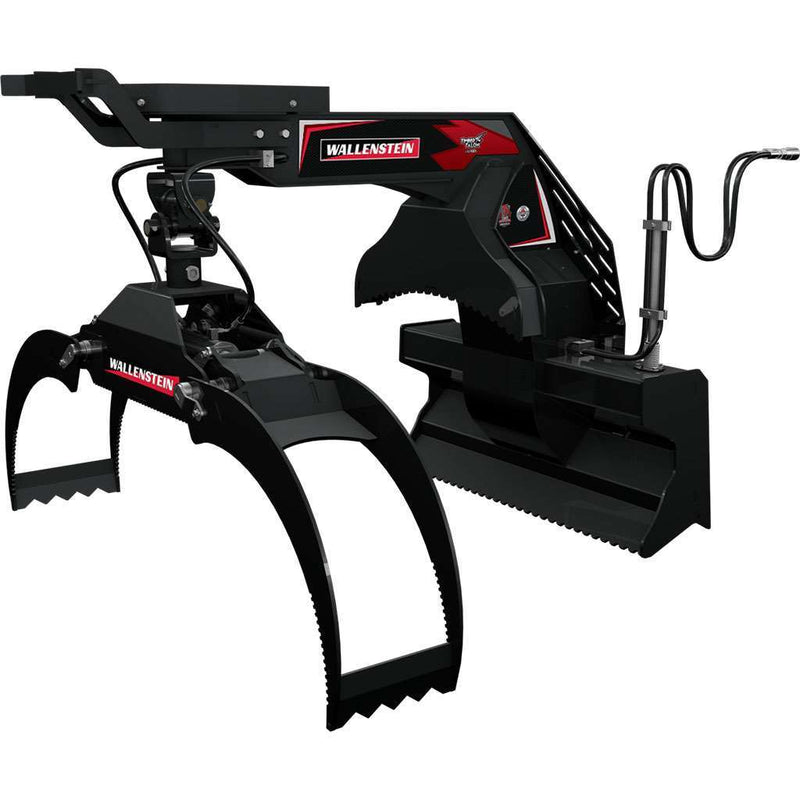

Wallenstein Equipment LXG430S – 4,500 lb Spring-Centered Skid‑Steer Log Grapple
MPN: LXG430S-1
$8,970.00
Direct Shipment from Manufacturer
72" opening, the LXG430S skidsteer, spring-centered log grapple twists when turning corners but stays straight when grabbing logs. Perfect partners for farmers, rural property owners, and logging contractors to haul logs out of the woods with confidence.
FEATURES
Bypass Grapples
Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.
Cantilever Cradle
Leverage and secure your load with the serrated cradle when lifting logs in-line.
Push Bar
Control what is happening in front of you by forcing trees to fall away from your tractor or skidsteer.
Spring Centered Grapple With Locking Positions
The grapple rotates when turning corners but stays straight when grabbing logs.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
72" opening, the LXG430S skidsteer, spring-centered log grapple twists when turning corners but stays straight when grabbing logs. Perfect partners for farmers, rural property owners, and logging contractors to haul logs out of the woods with confidence.
FEATURES
-
Bypass Grapples
Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.
-
Cantilever Cradle
Leverage and secure your load with the serrated cradle when lifting logs in-line.
-
Push Bar
Control what is happening in front of you by forcing trees to fall away from your tractor or skidsteer.
-
Spring Centered Grapple With Locking Positions
The grapple rotates when turning corners but stays straight when grabbing logs. Features lateral and in-line lock positions.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Lift Capacity | 4,500 lbs (2,041 kg) |
| Engine HP Range | 70 – 100 hp |
| Recommended Hydraulic Flow | 5 gpm (19 lpm) |
| Grapple Opening | 3″ – 72″ (8 cm – 182 cm) |
| Grapple Rotation | 180° |
| Clamp Force | 21,000 lbs (9,525 kg) |
| Push Bar Width | 19″ (48 cm) |
| Includes Hydraulic Hoses & Couplers | Yes |
| Total Weight | 1,050 lbs (476 kg) |
| Dimensions (L × W × H) | 69″ × 76″ × 53″ (176 × 193 × 135 cm) |
| Mounting System | Universal Skid-Steer Quick Attach Plate |
