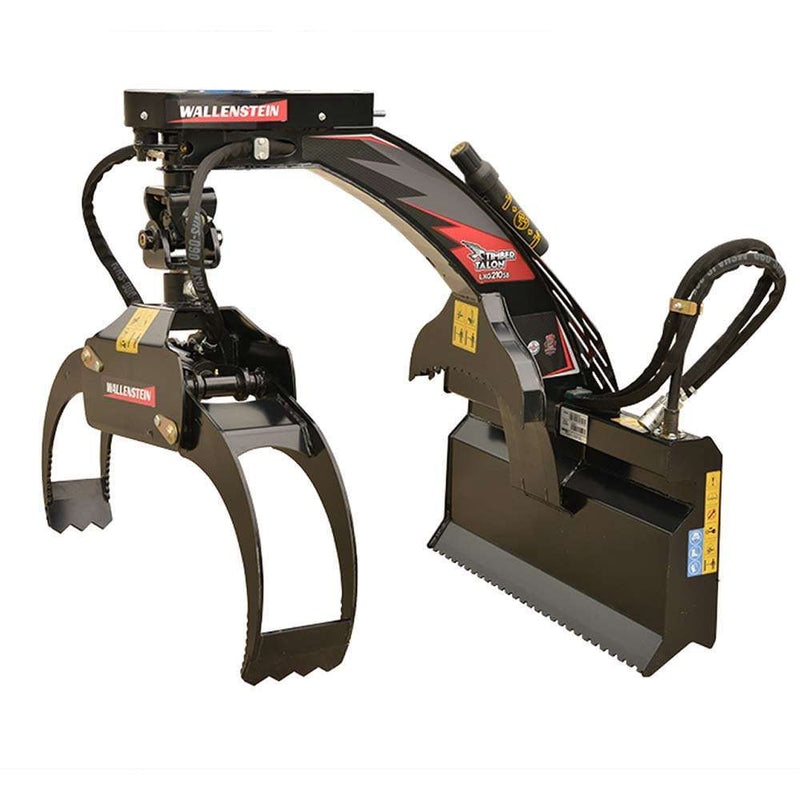

Wallenstein Equipment LXG210SB – 1,000 lb Mini - Skid Steer Log Grapple with Spring - Bias Enhancement - Iron Elk

Wallenstein Equipment LXG210SB – 1,000 lb Mini-Skid Steer Log Grapple with Spring-Bias Enhancement

by Wallenstein Equipment
$4,360.00 - $4,360.00
$4,360.00
$4,360.00 - $4,360.00
$4,360.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

40" opening, the LXG210SB (Bobcat) mini skidsteer, spring-centered log grapple twists when turning corners but stays straight when grabbing logs.  Perfect partners for farmers, rural property owners, and logging contractors to haul logs out of the woods with confidence.

FEATURES

  • Bypass Grapples

Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.

  • Cantilever Cradle

Leverage and secure your load with the serrated cradle when lifting logs in-line.

  • Spring Centered Grapple With Locking Positions

The grapple rotates when turning corners but stays straight when grabbing logs. Features lateral and in-line lock positions.

SPECIFICATIONS

Specification Details
Lift Capacity 1,000 lbs (454 kg)
Engine HP Range 12 – 50 hp
Recommended Hydraulic Flow 3 gpm (11 lpm)
Grapple Opening 3″ – 40″ (8 cm – 102 cm)
Grapple Rotation 180°
Clamp Force 9,400 lbs (4,264 kg)
Includes Hydraulic Hoses & Couplers Yes
Total Weight 343 lbs (156 kg)
Dimensions (L × W × H) 47″ × 44″ × 40″ (120 × 112 × 102 cm)
Mounting System Mini-Skid Steer Plate (Bobcat-style)



SHIPPING & SUPPORT

This product ships directly from Wallenstein Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
