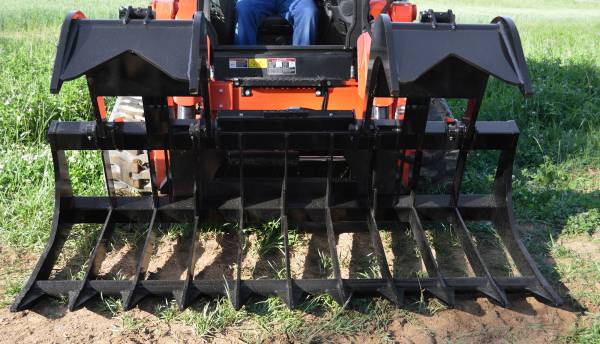

Loflin Fabrication XHD Root Grapple For Skid Steers & Tractors

by Loflin Fabrication
$4,785.00 - $5,529.00
$4,785.00
$4,785.00 - $5,529.00
$4,785.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

The Loflin Fabrication XHD (Extra Heavy Duty) Root Grapple is engineered for the most demanding land clearing and material handling tasks. Built with robust materials and designed for high-performance, this grapple is ideal for professionals requiring durability and strength in challenging environments.

FEATURES

  • Independent 1″ Thick Grapple Tines

Ensures a secure grip on uneven loads, enhancing control and stability.

  • Heavy-Duty Hydraulic Cylinders

Equipped with 2″ x 10″ covered cylinders, delivering 9,500 lbs of grappling force for unmatched material control.

  • Reinforced Steel Tines

½″ thick inner tines with 1″ thick outer tines, ensuring long-lasting strength and durability.

  • Reinforced Quick Attach System

Provides a secure and efficient connection to skid steer loaders.

  • Protected Hydraulic Components

Fully enclosed hoses and covered cylinders minimize wear and maintenance needs.

  • Greasable Hinges and Pins

Features fully greasable hinge points and oversized 1¼″ pins for smooth operation and longevity.

  • Optimized Opening Width

Offers a 33¼″ grapple opening to accommodate large loads effectively.

  • Efficient Tine Spacing

8½″ to 9″ spacing allows dirt to fall through while retaining larger debris.

  • Non-Invasive Ground Contact

Designed to glide along the surface, preventing underground damage.

  • Jobsite-Ready Components

Comes equipped with Parker brand hoses, fittings, and couplers for immediate use.

SPECIFICATIONS

Model Width Opening Width Tine Thickness Tine Spacing
XHD72 72″ 33¼″ ½″ (inner), 1″ (outer) 8½″–9″
XHD78 78″ 33¼″ ½″ (inner), 1″ (outer) 8½″–9″
XHD84 84″ 33¼″ ½″ (inner), 1″ (outer) 8½″–9″







SHIPPING & SUPPORT

This product ships directly from Loflin Fabrication U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
