Loflin Fabrication Vertical Grapple For Skid Steer & Tractors - Iron Elk

Loflin Fabrication Vertical Grapple For Skid Steer & Tractors

by Loflin Fabrication
$4,560.00 - $4,974.00
$4,560.00
$4,560.00 - $4,974.00
$4,560.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

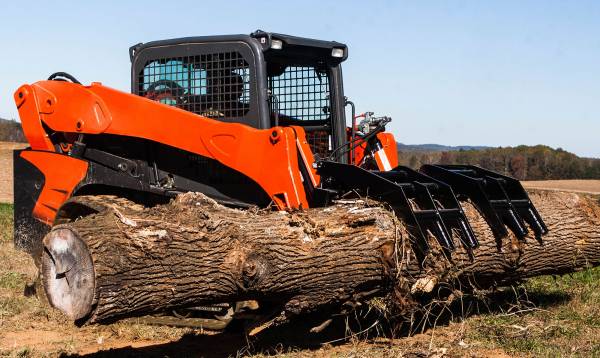

The Loflin Fabrication Vertical Root Grapple is a heavy-duty skid steer attachment designed for efficient land clearing, debris removal, and material handling. Its vertical tine design allows for precise lifting and sorting, making it ideal for contractors and property owners tackling challenging tasks.

FEATURES

  • Vertical Tine Design

Functions like a rake, enabling dirt and smaller debris to fall through while retaining larger materials.

  • Independent Grapple Tines

Dual tines operate independently, allowing secure handling of uneven and irregular loads.

  • Robust Steel Construction

Built with 1.5" thick steel tines and a reinforced quick-attach system, ensuring durability and longevity.

  • Heavy-Duty Hydraulic Cylinders

Equipped with two 2" x 10" cylinders delivering up to 3,000 psi, providing powerful clamping force.

  • Protected Hydraulic Components

Features fully enclosed cylinder covers and protected hoses to prevent damage during operation.

  • Maintenance-Friendly Design

Includes fully greasable hinge points and oversized 1.25" greasable pins for extended service life.

  • Parker® Brand Hoses and Fittings

Equipped with high-quality hydraulic components for reliable performance.

  • Multiple Size Options

Available in widths of 72", 78", and 84" to suit various equipment sizes and project requirements.

SPECIFICATIONS

Width Weight Opening Width Tine Thickness Tine Spacing Hydraulic Cylinders
72" 1117 lbs 54" 1.5" 11.25" 2" x 10"
78" 1166 lbs 54" 1.5" 11.25" 2" x 10"
84" 1215 lbs 54" 1.5" 11.25" 2" x 10"



SHIPPING & SUPPORT

This product ships directly from Loflin Fabrication U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
