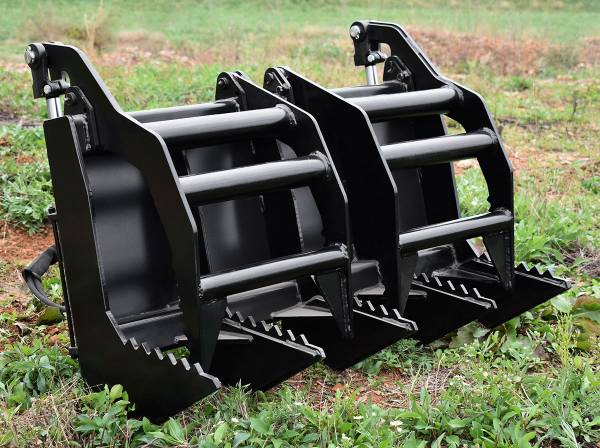

Loflin Fabrication Mini Skid Steer & Compact Tractor Vertical Root Grapple - Iron Elk

Loflin Fabrication Mini Skid Steer & Compact Tractor Vertical Root Grapple

by Loflin Fabrication
$1,864.00 - $2,074.00
$1,864.00
$1,864.00 - $2,074.00
$1,864.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

The Loflin Fabrication Mini Skid Steer & Compact Tractor Vertical Root Grapple is a robust, American-made attachment designed for efficient land clearing, root removal, and debris handling. Its rake-like design allows soil to sift through while securely grasping roots, logs, and brush, making it ideal for landscaping, construction, forestry, and agricultural applications.

FEATURES

  • Durable Construction

Built with 3/8" thick steel tines and a powder-coated finish for long-lasting durability.

  • Powerful Hydraulic Cylinders

Equipped with dual 2" x 8" hydraulic cylinders, providing strong clamping force for handling various materials.

  • Independent Grapple Tines

Each side moves independently to conform to uneven terrain and irregular loads, enhancing versatility.

  • Efficient Design

Allows dirt and small debris to fall through, reducing load weight and improving efficiency.

  • Protected Components

Features fully protected hoses and a covered hydraulic cylinder to prevent damage and extend lifespan.

  • Smooth Operation

Fully greasable hinge points ensure smooth movement and ease of maintenance.

  • Wide Opening Width

Offers a 33" maximum opening width, accommodating various root sizes and debris.

  • Jobsite Ready

Comes equipped with Parker brand hoses, fittings, and couplers for immediate use.

  • Versatile Compatibility

Available in 36", 42", and 48" sizes, compatible with mini skid steers, Toro Dingo, Bobcat MT50, and compact tractors.

SPECIFICATIONS

Model Width Weight Opening Width Tine Thickness Tine Spacing Hydraulic Cylinders Compatible Mounts
36" 280 lbs 33" 3/8" 9" – 12" Two 2" x 8" cylinders Toro Dingo, Bobcat MT50, Compact Tractors
42" 340 lbs 33" 3/8" 9" – 12" Two 2" x 8" cylinders Toro Dingo, Bobcat MT50, Compact Tractors
48" 360 lbs 33" 3/8" 9" – 12" Two 2" x 8" cylinders Toro Dingo, Bobcat MT50, Compact Tractors
 48" 370 lbs 33" 3/8" 9" – 12" Two 2" x 8" cylinders Toro Dingo, Bobcat MT50, Compact Tractors



SHIPPING & SUPPORT

This product ships directly from Loflin Fabrication U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
