Loflin Fabrication

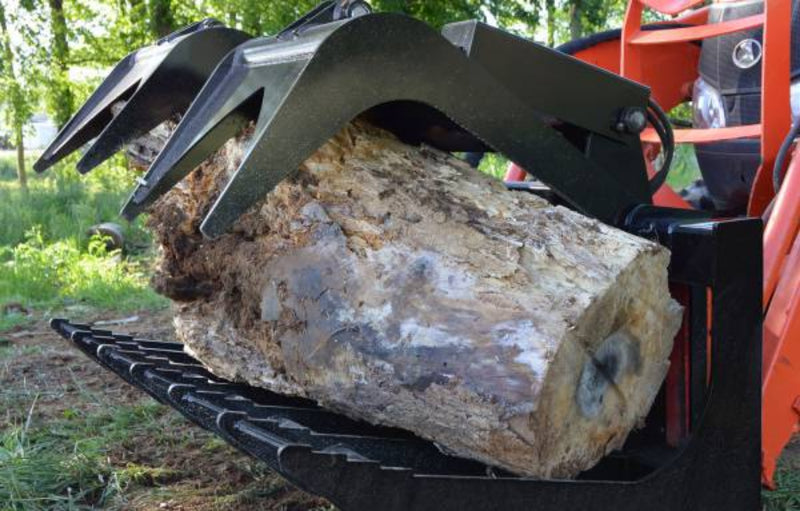

Loflin Fabrication Medium Duty Root Grapple For Skid Steers & Tractors
MPN: 0010501060
$3,064.00
Direct Shipment from Manufacturer
The Loflin Fabrication Medium Duty Root Grapple is a versatile and durable skid steer attachment designed for efficient land clearing, debris removal, and material handling.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
The Loflin Fabrication Medium Duty Root Grapple is a versatile and durable skid steer attachment designed for efficient land clearing, debris removal, and material handling. Engineered for machines up to 50 horsepower, this grapple combines robust construction with user-friendly features to tackle medium-duty tasks with ease.
FEATURES
- Independent Grapple Tines
Dual tines operate independently, allowing secure handling of uneven and irregular loads.
- Heavy-Duty Hydraulic Cylinders
Equipped with two 2" x 10" cylinders delivering up to 3,000 psi, ensuring powerful clamping force.
- Robust Steel Construction
Built with 3/8" thick Grade 50 steel tines and a reinforced quick-attach system for enhanced durability.
- Optimal Tine Spacing
Tines spaced every 9-10 inches allow dirt and smaller debris to fall through, simplifying sorting and reducing load weight.
- Protected Hydraulic Components
Features fully enclosed cylinder covers and protected hoses to prevent damage during operation.
- Maintenance-Friendly Design
Includes fully greasable hinge points and oversized 1¼" greasable pins for extended service life.
- Ground-Friendly Operation
Designed to slide along the ground without digging in, minimizing damage to underground utilities and topsoil.
- Multiple Size Options
Available in widths of 60", 66", and 72" to suit various equipment sizes and project requirements.
SPECIFICATIONS
| Width | Weight | Tine Spacing | Opening Width | Height x Depth |
|---|---|---|---|---|
| 60″ | 564 lbs | 8½″–9″ | 34¼″ | 34.2″ x 26″ |
| 66″ | 599 lbs | 8½″–9″ | 34¼″ | 34.2″ x 26″ |
| 72″ | 633 lbs | 8½″–9″ | 34¼″ | 34.2″ x 26″ |
