ANBO Manufacturing

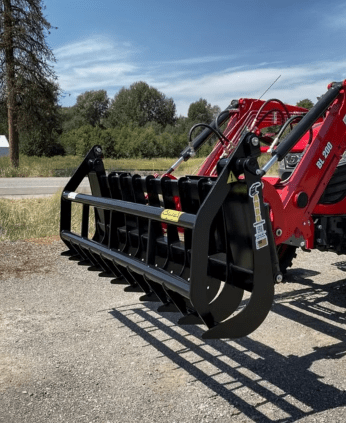

ANBO Grapple Rake 30 For Skid Steers and Tractors
MPN: GR30-6-32
$2,850.00
Direct Shipment from Manufacturer
A rugged, high-performance attachment engineered for clearing, demolition, rock work, and general debris handling.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
A rugged, high-performance attachment engineered for clearing, demolition, rock work, and general debris handling. Designed to deliver strength without sacrificing maneuverability, the GR30 is ideal for smaller machines (up to about 30 hp) and built to last.
FEATURES
- AR400F Steel Construction — Built from high-grade AR400F steel, offering superior yield strength and wear resistance compared to conventional steel.
- Lightweight But Tough Design — Maintains strength while minimizing weight, preserving your machine’s lifting capacity.
- Clamshell-style Tine Configuration — Dual halves (“clamshell”) allow efficient raking, digging, grabbing, and root removal in one motion.
- 2" × 6" Hydraulic Cylinders — Robust cylinders sized to deliver reliable operation and strong closing force.
- Greaseable Pivot Points & Secure Hose Routing — Simplifies maintenance and protects hydraulic components in rugged use.
- Fits Machines up to Approx. 30 HP — Purpose-built for use with smaller tractors, compact loaders, or skid steers.
- Made in USA with American Steel — Entirely designed and manufactured in Colville, Washington, using domestic materials.
- Warranty Coverage — Backed by a manufacturer’s warranty (often 2 years for defects) to provide added assurance.
SPECIFICATIONS
| MPN | Tine Spacing | Width | Weight | Max HP | Tine Size (Outer : Inner) | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR30-6-32 | 6" | 32" | 210 lb | 30 hp | 1/4" : 1/4" | 36" | 2" x 6" |
| GR30-6-38 | 6" | 38" | 230 lb | 30 hp | 1/4" : 1/4" | 36" | 2" x 6" |
| GR30-6-44 | 6" | 44" | 256 lb | 30 hp | 1/4" : 1/4" | 36" | 2" x 6" |
| GR30-6-50 | 6" | 50" | 276 lb | 30 hp | 1/4" : 1/4" | 36" | 2" x 6" |
| GR30-6-57 | 6" | 57" | 301 lb | 30 hp | 1/4" : 1/4" | 36" | 2" x 6" |
| GR30-6-63 | 6" | 63" | 314 lb | 30 hp | 1/4" : 1/4" | 36" | 2" x 6" |
| GR30-6-69 | 6" | 69" | 334 lb | 30 hp | 1/4" : 1/4" | 36" | 2" x 6" |
SHIPPING & SUPPORT
This product typically ships within 3–5 business days. Total estimated delivery time is 8–10 business days from order placement. Delivery timelines may vary during peak seasons or due to manufacturer lead times.
Have questions or need help choosing the right size or accessories?
Contact us at sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
Shipping & Delivery
Iron Elk Equipment offers free shipping on all orders over $2,500 within the contiguous United States.
Order Processing
3-5 business days handling time
In Transit
5-7 business days shipping via freight carrier
Total Estimated Delivery
8-10 business days from time of order
Depending on seasonality and availability, shipping times may vary. You will receive tracking information once your order has shipped. For questions about shipping to your area, please contact us at (307) 832-5565 or sales@ironelkequipment.com.
Warranty & Returns
All products sold by Iron Elk Equipment carry the full manufacturer warranty. Warranty terms vary by manufacturer and product. Please contact us for specific warranty details on this item.
Defective or Damaged Products
If you receive a defective or damaged product, please contact us within 48 hours of delivery at (307) 832-5565 or sales@ironelkequipment.com. We will work with the manufacturer to resolve the issue promptly.
Returns
Returns of unused, undamaged products may be accepted within 30 days of delivery. A restocking fee may apply. Please contact us before returning any item. For full details, see our Refund & Return Policy.
Questions About This Product?
Our equipment specialists are happy to help you determine if this product is right for your application.
Call Us
(307) 832-5565
Monday - Friday, 8:00 AM - 5:00 PM MST
Email Us
sales@ironelkequipment.com
We respond within 24-48 hours on business days
We can also provide custom quotes for bulk orders or special configurations.
A rugged, high-performance attachment engineered for clearing, demolition, rock work, and general debris handling. Designed to deliver strength without sacrificing maneuverability, the GR30 is ideal for smaller machines (up to about 30 hp) and built to last.
