ANBO Manufacturing
ANBO Grapple Rake Sub-Compact For Compact Tractor
$2,470.00
ANBO Manufacturing

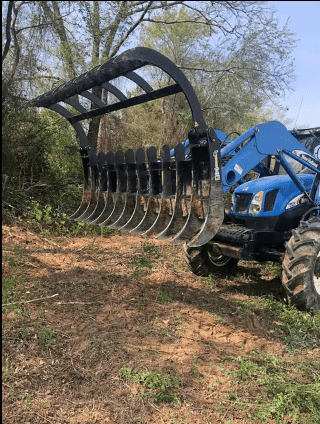

ANBO Grapple Rake 160 For Skid Steers and Tractors
MPN: GR160-6-74
$8,350.00
Direct Shipment from Manufacturer
The ANBO GR160 is built to handle the toughest jobs — land clearing, rock work, stump and root removal, and debris handling — all while being sized for machines rated up to 160 horsepower.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
The ANBO GR160 is built to handle the toughest jobs — land clearing, rock work, stump and root removal, and debris handling — all while being sized for machines rated up to 160 horsepower. With its robust AR400F steel construction, clamshell design, and substantial hydraulic capability, the GR160 excels in demanding work environments.
FEATURES
-
Built with AR400F Steel
All tines and structural components use AR400F alloy steel, delivering significantly better wear resistance and durability than conventional steel. -
Thick Outer / Inner Tines
Standard versions use ¾" outer / 5⁄8" inner tines to resist bending and fatigue under heavy loads. -
Powerful Hydraulic Cylinders (3" × 10")
Equipped with 3" × 10" cylinders that provide strong closing force and control, even under heavy material loads. -
58" Opening (Standard across Variants)
The grapple’s jaw opens approximately 58" to accommodate large logs, brush, and bulky materials. -
Clamshell Grapple Design
The dual-grapple arms apply even pressure across the load, improving grip and minimizing shifting during handling. -
Greaseable Pivot Points & Secure Hose Routing
All hinge points are serviceable with grease fittings, and hoses are routed cleanly to reduce interference and abrasion risk. -
Versatile Root-Rake Capability
Though heavy-duty, the GR160 is built “short tines” style (similar to a root rake) making it effective for digging or raking roots and debris in the soil. -
Made in USA & Warranty Support
Manufactured in Colville, Washington, with a 2-year general warranty and 3-year cylinder warranty for added assurance.
SPECIFICATIONS
| MPN | Tine Spacing | Width | Weight | Max HP | Tine Size (Outer : Inner) | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR160-6-74 | 6" | 74" | 1117 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-6-80 | 6" | 80" | 1188 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-6-87 | 6" | 87" | 1259 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-6-94 | 6" | 94" | 1330 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-6-100 | 6" | 100" | 1403 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-6-107 | 6" | 107" | 1480 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-8-70 | 8" | 70" | 975 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-8-79 | 8" | 79" | 1055 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-8-87 | 8" | 87" | 1135 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-8-96 | 8" | 94" | 1219 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-8-104 | 8" | 104" | 1300 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-12-77 | 12" | 77" | 914 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-12-89 | 12" | 89" | 1013 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-12-102 | 12" | 102" | 1092 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
| GR160-12-115 | 12" | 115" | 1296 lb | 160 hp | 3/4" : 5/8" | 58" | 3" x 10" |
