ANBO Manufacturing
ANBO Grapple Rake 120 For Skid Steers and Tractors
MPN: GR120-6-61
$5,700.00
Direct Shipment from Manufacturer

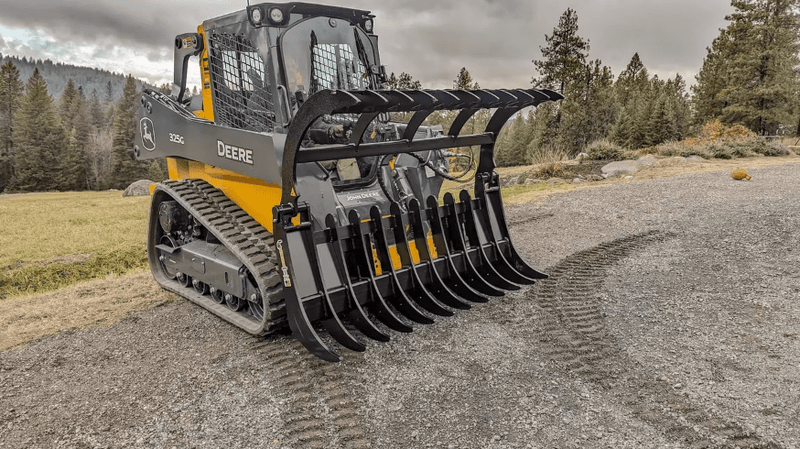

The ANBO GR120 Grapple Rake is engineered to tackle demanding land clearing, rock work, and debris management tasks.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
The ANBO GR120 Grapple Rake is engineered to tackle demanding land clearing, rock work, and debris management tasks. Designed for machines up to 120 horsepower, it offers superior strength, wider reach, and advanced durability. Built with AR400F alloy steel and reinforced hydraulics, the GR120 delivers industrial performance without overburdening your machine.
FEATURES
-
AR400F Alloy Steel Construction
The GR120 is built with AR400F steel tines—a high-grade material that vastly outperforms standard construction steel in wear resistance and strength. -
Thick Outer & Inner Tines
Utilizes ¾" outer and 5⁄8" inner AR400F tines for rugged durability and resistance to bending or fatigue when handling heavy loads. -
Heavy-Duty Hydraulic Cylinders
Includes 2.5" × 8" or 3.0" × 8" cylinders (depending on width) to deliver strong clamping force under load. -
High Load Capacity & Matching HP Rating
Rated for use on machines up to 120 HP, enabling it to handle heavier volumes of material. -
Open-Bottom Rake Design
Soil, small rocks, and fine debris pass through the bottom while the grapple retains logs and large material — keeping loads cleaner and reducing unnecessary weight. -
Greaseable Pivots & Protected Hose Routing
All pivot pins are serviceable, and hydraulic hoses are routed to minimize damage during heavy use. -
Made in the USA with Full Support
As with all ANBO rakes, the GR120 is manufactured in Colville, Washington, with American steel and backed by quality checks and support.
SPECIFICATIONS
| MPN | Tine Spacing | Width | Weight | Max HP | Tine Size (Outer : Inner) | Opening | Cylinders |
|---|---|---|---|---|---|---|---|
| GR120-6-61 | 6" | 61" | 776 lb | 120 hp | 3/4" : 5/8" | 48" | 2.5" x 8" |
| GR120-6-67 | 6" | 67" | 837 lb | 120 hp | 3/4" : 5/8" | 48" | 2.5" x 8" |
| GR120-6-74 | 6" | 74" | 912 lb | 120 hp | 3/4" : 5/8" | 48" | 3" x 8" |
| GR120-6-80 | 6" | 80" | 968 lb | 120 hp | 3/4" : 5/8" | 48" | 3" x 8" |
| GR120-6-87 | 6" | 87" | 1024 lb | 120 hp | 3/4" : 5/8" | 48" | 3" x 8" |
| GR120-6-94 | 6" | 94" | 1085 lb | 120 hp | 3/4" : 5/8" | 48" | 3" x 8" |
| GR120-8-61 | 8" | 61" | 735 lb | 120 hp | 3/4" : 5/8" | 48" | 2.5" x 8" |
| GR120-8-70 | 8" | 70" | 798 lb | 120 hp | 3/4" : 5/8" | 48" | 2.5" x 8" |
| GR120-8-79 | 8" | 78" | 862 lb | 120 hp | 3/4" : 5/8" | 48" | 3" x 8" |
| GR120-8-87 | 8" | 87" | 926 lb | 120 hp | 3/4" : 5/8" | 48" | 3" x 8" |
| GR120-8-96 | 8" | 96" | 996 lb | 120 hp | 3/4" : 5/8" | 48" | 3" x 8" |
