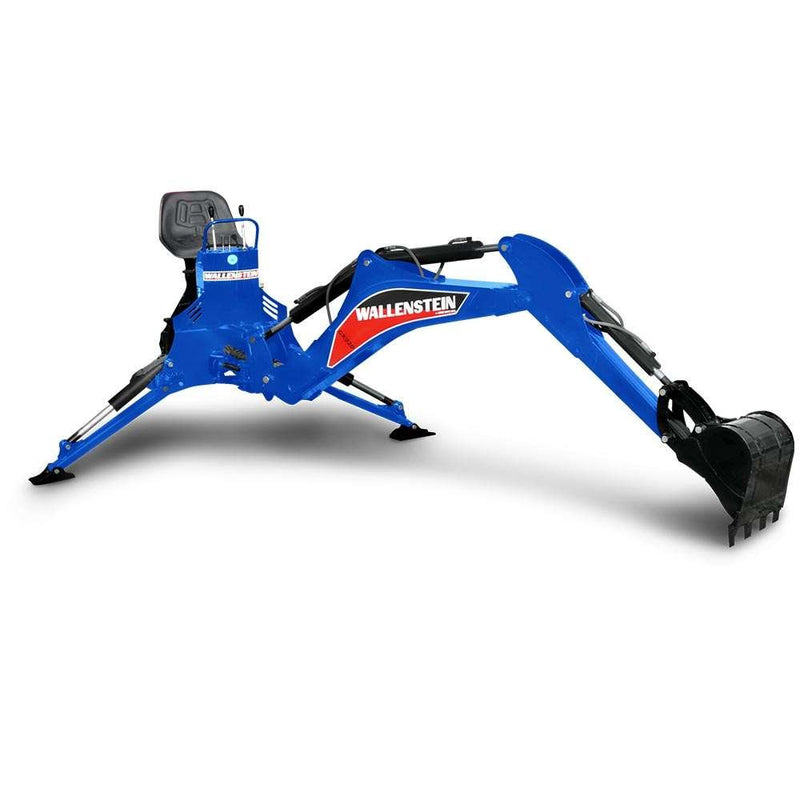

Wallenstein Equipment GX920 Compact Backhoe For Skid Steers & Tractors

by Wallenstein Equipment
$11,650.00 - $11,650.00
$11,650.00
$11,650.00 - $11,650.00
$11,650.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

9' 4" digging depth, the GX920 backhoe can mount on your tractor or skidsteer to handle any landscaping or dirt excavating job. For rural property owners, farmers or small businesses, this rugged backhoe is ready to sink its teeth into any task you give it.

FEATURES

  • Curved Boom

Protects backhoe from unnecessary damage while preventing ground from falling back into the hole.

  • Dual Swing Cylinders

Dual cylinders provide strong, consistent movement throughout the entire 180-degree range.

  • Greaseable Pins

Maintenance is easy with greasable pins on all pivot points.

  • Hardened Steel Bushings

To reduce wear, hardened steel bushings are installed on all the main pivot points.

  • Hydraulic Stabilizers

Easy to use hydraulic stabilizers help to prevent tipping.

  • Replaceable Teeth

Our pin-on bucket teeth allow you to swap out worn or damaged teeth and get back to work as soon as possible.

  • Skidsteer Mount

The universal quick attach plate connects easily to most skidsteers.

  • Subframe Mounting

Allows your tractor to safely handle the stresses developed by digging with a backhoe attachment.

  • Swing Cushioning

When swinging the boom to the extreme ends, hydraulic cushioning gracefully brings the boom to a controlled stop.

SPECIFICATIONS

Specification Details
Digging Depth 9' 4" (284 cm)
Engine HP Range (Tractor) 45 - 120
Engine HP Range (Skid Steer) 45 - 120
Required Hydraulic Flow 5 - 27 gpm (19 - 102 lpm)
Stabilizer Width (Spread) 89" (226 cm)
Main Boom Cylinder Diameter 3" (76 mm)
Dipper Cylinder Diameter 2.5" (64 mm)
Bucket Cylinder Diameter 2.5" (64 mm)
Number of Swing Cylinders 2
Swing Cylinder Diameter 2.5" (64 mm)
Stabilizer Cylinder Diameter 3" (76 mm)
Reach from Swing Post 141" (358 cm)
Includes Flow Divider Yes
Bucket Rotation 180°
Swing Arc 180°
SAE Dipper Boom Digging Force* 3200 lbs (1451 kg)
SAE Bucket Digging Force* 3925 lbs (1780 kg)
Boom Lift Capacity 750 lbs (340 kg)
Ground Clearance 10.5" (27 cm)
Loading Height 89" (226 cm)
Overall Operating Height (Fully Raised) 135" (343 cm)
Includes Hydraulic Hoses and Couplers Yes
Total Weight 791 lbs (359 kg)
Transport Dimensions (L x W x H) 81" x 43" x 92" (206 cm x 109 cm x 234 cm)
Operating Pressure 2250 psi (15513 kPa)
Mounting System Subframe, Skid Steer Universal Plate, PT302 (Cat I), PT322 (Cat II)



SHIPPING & SUPPORT

This product ships directly from Wallenstein Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
