Home /Wallenstein Equipment GE605 Backhoe Attachment For Compact Tractors
Wallenstein Equipment GE605 Backhoe Attachment For Compact Tractors - Iron Elk
Wallenstein Equipment GE605 Backhoe Attachment For Compact Tractors - Iron Elk
Wallenstein Equipment GE605 Backhoe Attachment For Compact Tractors - Iron Elk
Wallenstein Equipment GE605 Backhoe Attachment For Compact Tractors - Iron Elk

Wallenstein Equipment

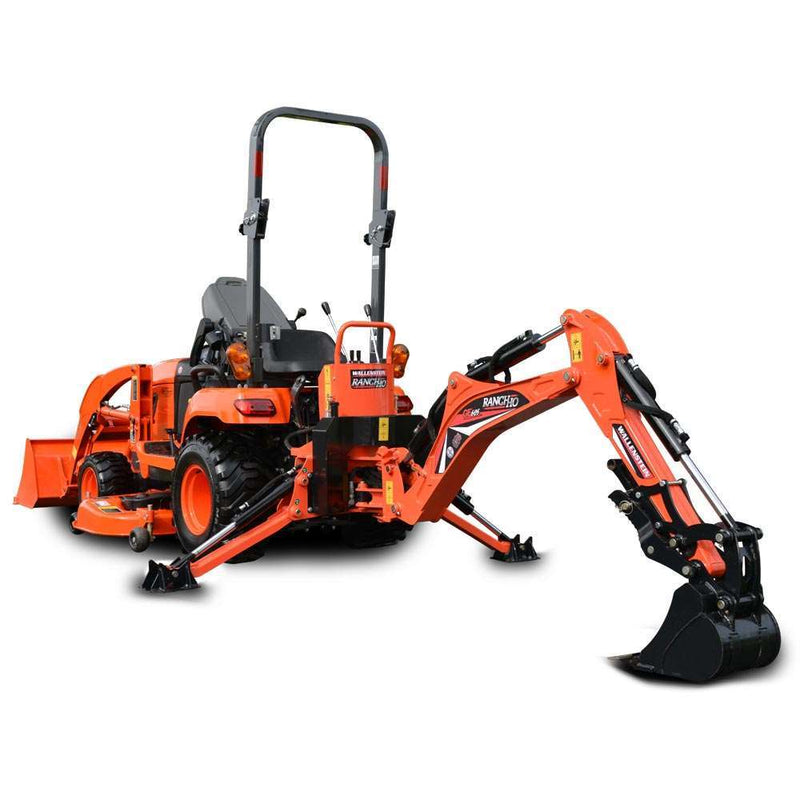

Wallenstein Equipment GE605 Backhoe Attachment For Compact Tractors

MPN: GE605-1

$7,100.00
Direct Shipment from Manufacturer
6' 4" digging depth, the GE605 backhoe can mount on your tractor to handle any landscaping or dirt excavating job.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Shipping Policy | Return Policy | Warranty Info

6' 4" digging depth, the GE605 backhoe can mount on your tractor to handle any landscaping or dirt excavating job. For rural property owners, farmers or small businesses, this rugged backhoe is ready to sink its teeth into any task you give it.

FEATURES

  • Curved Boom

Protects backhoe from unnecessary damage while preventing ground from falling back into the hole.

  • Greaseable Pins

Maintenance is easy with greasable pins on all pivot points.

  • Hydraulic Stabilizers

Easy to use hydraulic stabilizers help to prevent tipping.

  • Replaceable Teeth

Our pin-on bucket teeth allow you to swap out worn or damaged teeth and get back to work as soon as possible.

  • Subframe Mounting

Allows your tractor to safely handle the stresses developed by digging with a backhoe attachment.

  • Swing Cushioning

When swinging the boom to the extreme ends, hydraulic cushioning gracefully brings the boom to a controlled stop.

SPECIFICATIONS

Specification Details
Digging Depth 6' 4" (193 cm)
Engine HP Range (Tractor) 15 - 35
Required Hydraulic Flow 4 - 12 gpm (15 - 45 lpm)
Stabilizer Width (Spread) 72" (183 cm)
Main Boom Cylinder Diameter 2.5" (64 mm)
Dipper Cylinder Diameter 2.25" (57 mm)
Bucket Cylinder Diameter 2" (51 mm)
Number of Swing Cylinders 1
Swing Cylinder Diameter 2.5" (64 mm)
Stabilizer Cylinder Diameter 2" (51 mm)
Reach from Swing Post 100" (254 cm)
Includes Flow Divider No
Bucket Rotation 180°
Swing Arc 150°
SAE Dipper Boom Digging Force* 1250 lbs (567 kg)
SAE Bucket Digging Force* 2054 lbs (932 kg)
Boom Lift Capacity 250 lbs (113 kg)
Ground Clearance 8.5" (22 cm)
Loading Height 62" (158 cm)
Overall Operating Height (Fully Raised) 91" (231 cm)
Includes Hydraulic Hoses and Couplers Yes
Total Weight 500 lbs (227 kg)
Transport Dimensions (L x W x H) 56" x 41" x 65" (142 cm x 104 cm x 165 cm)
Operating Pressure 1800 psi (12411 kPa)
Mounting System Subframe



SHIPPING & SUPPORT

This product typically ships within 3–5 business days. Total estimated delivery time is 8–10 business days from order placement. Delivery timelines may vary during peak seasons or due to manufacturer lead times.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.



Shipping & Delivery

Iron Elk Equipment offers free shipping on all orders over $2,500 within the contiguous United States.

Order Processing

3-5 business days handling time

In Transit

5-7 business days shipping via freight carrier

Total Estimated Delivery

8-10 business days from time of order

Depending on seasonality and availability, shipping times may vary. You will receive tracking information once your order has shipped. For questions about shipping to your area, please contact us at (307) 832-5565 or sales@ironelkequipment.com.

Warranty & Returns

All products sold by Iron Elk Equipment carry the full manufacturer warranty. Warranty terms vary by manufacturer and product. Please contact us for specific warranty details on this item.

Defective or Damaged Products

If you receive a defective or damaged product, please contact us within 48 hours of delivery at (307) 832-5565 or sales@ironelkequipment.com. We will work with the manufacturer to resolve the issue promptly.

Returns

Returns of unused, undamaged products may be accepted within 30 days of delivery. A restocking fee may apply. Please contact us before returning any item. For full details, see our Refund & Return Policy.

Questions About This Product?

Our equipment specialists are happy to help you determine if this product is right for your application.

Call Us (307) 832-5565

Monday - Friday, 8:00 AM - 5:00 PM MST

Email Us sales@ironelkequipment.com

We respond within 24-48 hours on business days

We can also provide custom quotes for bulk orders or special configurations.

6' 4" digging depth, the GE605 backhoe can mount on your tractor to handle any landscaping or dirt excavating job. For rural property owners, farmers or small businesses, this rugged backhoe is ready to sink its teeth into any task you give it.

FEATURES

  • Curved Boom

Protects backhoe from unnecessary damage while preventing ground from falling back into the hole.

  • Greaseable Pins

Maintenance is easy with greasable pins on all pivot points.

  • Hydraulic Stabilizers

Easy to use hydraulic stabilizers help to prevent tipping.

  • Replaceable Teeth

Our pin-on bucket teeth allow you to swap out worn or damaged teeth and get back to work as soon as possible.

  • Subframe Mounting

Allows your tractor to safely handle the stresses developed by digging with a backhoe attachment.

  • Swing Cushioning

When swinging the boom to the extreme ends, hydraulic cushioning gracefully brings the boom to a controlled stop.

SPECIFICATIONS

Specification Details
Digging Depth 6' 4" (193 cm)
Engine HP Range (Tractor) 15 - 35
Required Hydraulic Flow 4 - 12 gpm (15 - 45 lpm)
Stabilizer Width (Spread) 72" (183 cm)
Main Boom Cylinder Diameter 2.5" (64 mm)
Dipper Cylinder Diameter 2.25" (57 mm)
Bucket Cylinder Diameter 2" (51 mm)
Number of Swing Cylinders 1
Swing Cylinder Diameter 2.5" (64 mm)
Stabilizer Cylinder Diameter 2" (51 mm)
Reach from Swing Post 100" (254 cm)
Includes Flow Divider No
Bucket Rotation 180°
Swing Arc 150°
SAE Dipper Boom Digging Force* 1250 lbs (567 kg)
SAE Bucket Digging Force* 2054 lbs (932 kg)
Boom Lift Capacity 250 lbs (113 kg)
Ground Clearance 8.5" (22 cm)
Loading Height 62" (158 cm)
Overall Operating Height (Fully Raised) 91" (231 cm)
Includes Hydraulic Hoses and Couplers Yes
Total Weight 500 lbs (227 kg)
Transport Dimensions (L x W x H) 56" x 41" x 65" (142 cm x 104 cm x 165 cm)
Operating Pressure 1800 psi (12411 kPa)
Mounting System Subframe
