Wallenstein Equipment
Wallenstein Equipment QC620 Skid-Steer Backhoe Attachment
$3,430.00
Wallenstein Equipment

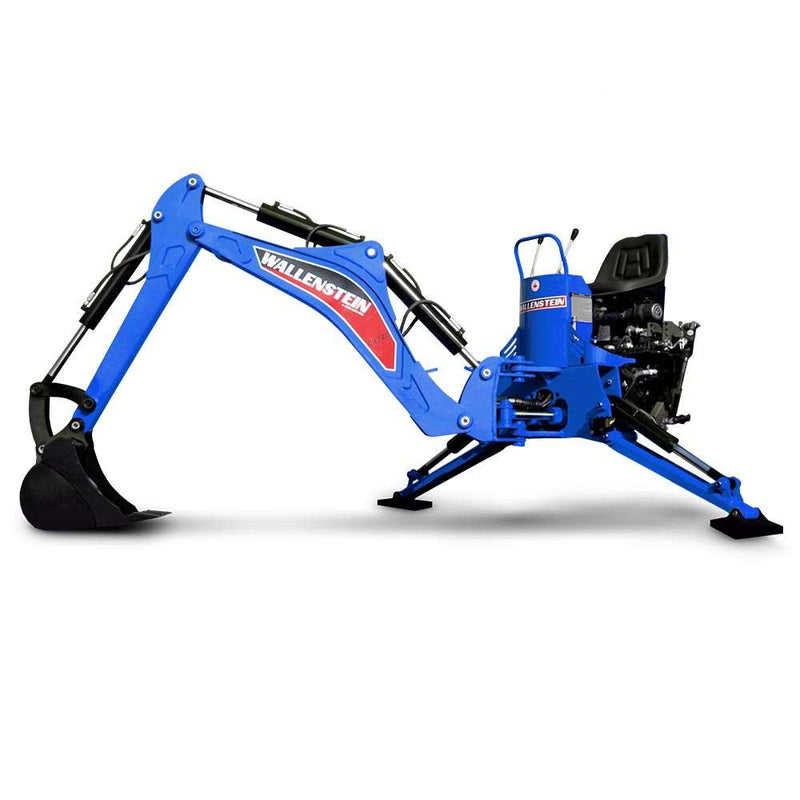

Wallenstein Equipment GX720 Compact Backhoe For Skid Steers & Tractors
MPN: GX720-1
$9,880.00
Direct Shipment from Manufacturer
7' 8" digging depth, the GX720 backhoe can mount on your tractor or skidsteer to handle any landscaping or dirt excavating job.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
7' 8" digging depth, the GX720 backhoe can mount on your tractor or skidsteer to handle any landscaping or dirt excavating job. For rural property owners, farmers or small businesses, this rugged backhoe is ready to sink its teeth into any task you give it.
FEATURES
-
Curved Boom
Protects backhoe from unnecessary damage while preventing ground from falling back into the hole.
-
Dual Swing Cylinders
Dual cylinders provide strong, consistent movement throughout the entire 180-degree range.
-
Greaseable Pins
Maintenance is easy with greasable pins on all pivot points.
-
Hardened Steel Bushings
To reduce wear, hardened steel bushings are installed on all the main pivot points.
-
Hydraulic Stabilizers
Easy to use hydraulic stabilizers help to prevent tipping.
-
Replaceable Teeth
Our pin-on bucket teeth allow you to swap out worn or damaged teeth and get back to work as soon as possible.
-
Skidsteer Mount
The universal quick attach plate connects easily to most skidsteers.
-
Subframe Mounting
Allows your tractor to safely handle the stresses developed by digging with a backhoe attachment.
-
Swing Cushioning
When swinging the boom to the extreme ends, hydraulic cushioning gracefully brings the boom to a controlled stop.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Digging Depth | 7' 8" (234 cm) |
| Engine HP Range (Tractor) | 30 - 65 |
| Engine HP Range (Skid Steer) | 30 - 75 |
| Required Hydraulic Flow | 5 - 27 gpm (19 - 102 lpm) |
| Stabilizer Width (Spread) | 89" (226 cm) |
| Main Boom Cylinder Diameter | 3" (76 mm) |
| Dipper Cylinder Diameter | 2.5" (64 mm) |
| Bucket Cylinder Diameter | 2.5" (64 mm) |
| Number of Swing Cylinders | 2 |
| Swing Cylinder Diameter | 2.5" (64 mm) |
| Stabilizer Cylinder Diameter | 2.5" (64 mm) |
| Reach from Swing Post | 123" (312 cm) |
| Includes Flow Divider | Yes |
| Bucket Rotation | 180° |
| Swing Arc | 180° |
| SAE Dipper Boom Digging Force* | 2300 lbs (1043 kg) |
| SAE Bucket Digging Force* | 3800 lbs (1724 kg) |
| Boom Lift Capacity | 925 lbs (420 kg) |
| Ground Clearance | 10.5" (27 cm) |
| Loading Height | 80" (203 cm) |
| Overall Operating Height (Fully Raised) | 119" (302 cm) |
| Includes Hydraulic Hoses and Couplers | Yes |
| Total Weight | 765 lbs (347 kg) |
| Transport Dimensions (L x W x H) | 80" x 43" x 79" (203 cm x 109 cm x 201 cm) |
| Operating Pressure | 2250 psi (15513 kPa) |
| Mounting System | Subframe, Skid Steer Universal Plate, PT302 (Cat I), PT322 (Cat II) |
