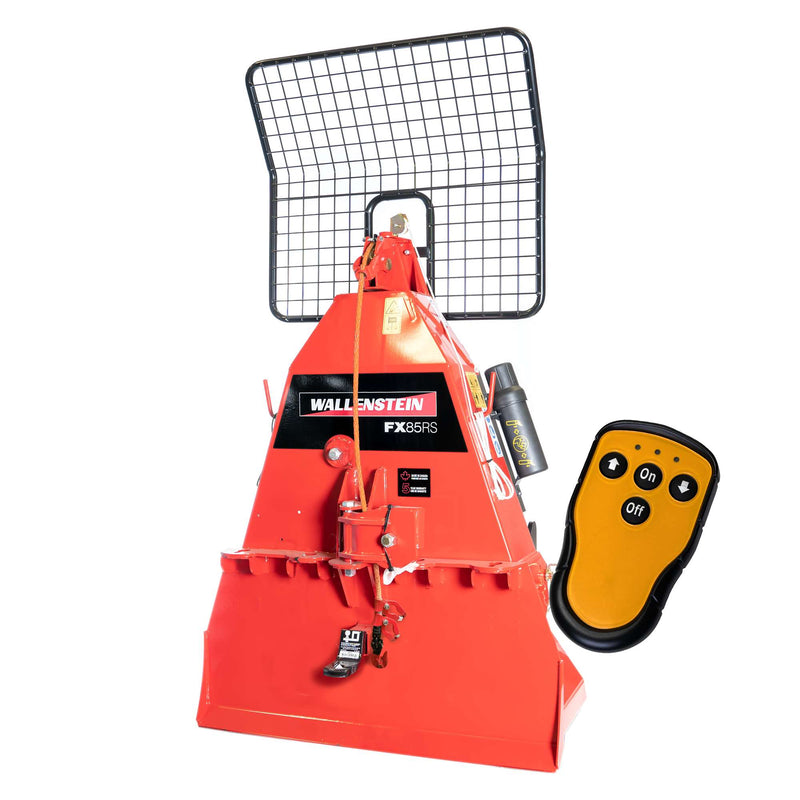

Wallenstein Equipment FX85RS – 8,500 lb Remote-Controlled PTO Skidding Winch with Synthetic Rope

MPN: FX85RS-1

$8,280.00
Direct Shipment from Manufacturer
8500 lbs pulling capacity, the FX85 PTO driven skidding winch with remote operation and synthetic rope is perfect for managing your woodlot.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Shipping Policy | Return Policy | Warranty Info

8500 lbs pulling capacity, the FX85 PTO driven skidding winch with remote operation and synthetic rope is perfect for managing your woodlot. Reach the trees you need to pull, even on steep hills or swampland with ease.

FEATURES

  • 2 Choker Chains

Pull an additional two logs with the included steel choker chains.

  • 2 Keyhole Sliders

Coupled with the included choker chains, pull an additional two logs.

  • Factory Installed Remote Control Winch Kit

Pull in your logs with the push of a button from up to 150 feet (45 m) away.

  • Removable Clutch Assembly

Easily service your winch with the removable clutch.

  • Shearbolt Protected PTO Drivetrain Included

Move on from a power spike by simply replacing a single shear bolt.

  • Snatch Block Pulley System

Adjust the pull angle for maximum stability in all pulling situations.

  • Tow Bar

Complete with keyhole slots to hook up choker chains for skidding logs out of the bush.

  • Trailer Hitch

Allows you to hook onto a trailer without detaching the winch.

SPECIFICATIONS

Specification Details
Pulling Capacity 8,500 lbs (3,855 kg)
Engine HP Range 30 – 55 hp
Required Hydraulic Flow 1 – 2 gpm (4 – 8 lpm)
Winch Type Mechanical, Dry Disc Clutch
Line Speed 96 – 238 ft/min (29 – 72 m/min)
Cable Type Synthetic Rope
Cable Length 200′ (60 m)
Cable Diameter 7/16″ (11 mm)
Choker Chains 2
PTO Input Speed 540 rpm
PTO Height 16″ (41 cm)
Total Weight 470 lbs (213 kg)
Dimensions (L×W×H) 27″ × 40″ × 76″ (69 × 102 × 193 cm)
Mounting System Cat I 3‑Point Hitch



SHIPPING & SUPPORT

This product typically ships within 3–5 business days. Total estimated delivery time is 8–10 business days from order placement. Delivery timelines may vary during peak seasons or due to manufacturer lead times.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.



Shipping & Delivery

Iron Elk Equipment offers free shipping on all orders over $2,500 within the contiguous United States.

Order Processing

3-5 business days handling time

In Transit

5-7 business days shipping via freight carrier

Total Estimated Delivery

8-10 business days from time of order

Depending on seasonality and availability, shipping times may vary. You will receive tracking information once your order has shipped. For questions about shipping to your area, please contact us at (307) 832-5565 or sales@ironelkequipment.com.

Warranty & Returns

All products sold by Iron Elk Equipment carry the full manufacturer warranty. Warranty terms vary by manufacturer and product. Please contact us for specific warranty details on this item.

Defective or Damaged Products

If you receive a defective or damaged product, please contact us within 48 hours of delivery at (307) 832-5565 or sales@ironelkequipment.com. We will work with the manufacturer to resolve the issue promptly.

Returns

Returns of unused, undamaged products may be accepted within 30 days of delivery. A restocking fee may apply. Please contact us before returning any item. For full details, see our Refund & Return Policy.

Questions About This Product?

Our equipment specialists are happy to help you determine if this product is right for your application.

Call Us (307) 832-5565

Monday - Friday, 8:00 AM - 5:00 PM MST

Email Us sales@ironelkequipment.com

We respond within 24-48 hours on business days

We can also provide custom quotes for bulk orders or special configurations.

8500 lbs pulling capacity, the FX85 PTO driven skidding winch with remote operation and synthetic rope is perfect for managing your woodlot. Reach the trees you need to pull, even on steep hills or swampland with ease.

FEATURES

  • 2 Choker Chains

Pull an additional two logs with the included steel choker chains.

  • 2 Keyhole Sliders

Coupled with the included choker chains, pull an additional two logs.

  • Factory Installed Remote Control Winch Kit

Pull in your logs with the push of a button from up to 150 feet (45 m) away.

  • Removable Clutch Assembly

Easily service your winch with the removable clutch.

  • Shearbolt Protected PTO Drivetrain Included

Move on from a power spike by simply replacing a single shear bolt.

  • Snatch Block Pulley System

Adjust the pull angle for maximum stability in all pulling situations.

  • Tow Bar

Complete with keyhole slots to hook up choker chains for skidding logs out of the bush.

  • Trailer Hitch

Allows you to hook onto a trailer without detaching the winch.

SPECIFICATIONS

Specification Details
Pulling Capacity 8,500 lbs (3,855 kg)
Engine HP Range 30 – 55 hp
Required Hydraulic Flow 1 – 2 gpm (4 – 8 lpm)
Winch Type Mechanical, Dry Disc Clutch
Line Speed 96 – 238 ft/min (29 – 72 m/min)
Cable Type Synthetic Rope
Cable Length 200′ (60 m)
Cable Diameter 7/16″ (11 mm)
Choker Chains 2
PTO Input Speed 540 rpm
PTO Height 16″ (41 cm)
Total Weight 470 lbs (213 kg)
Dimensions (L×W×H) 27″ × 40″ × 76″ (69 × 102 × 193 cm)
Mounting System Cat I 3‑Point Hitch
