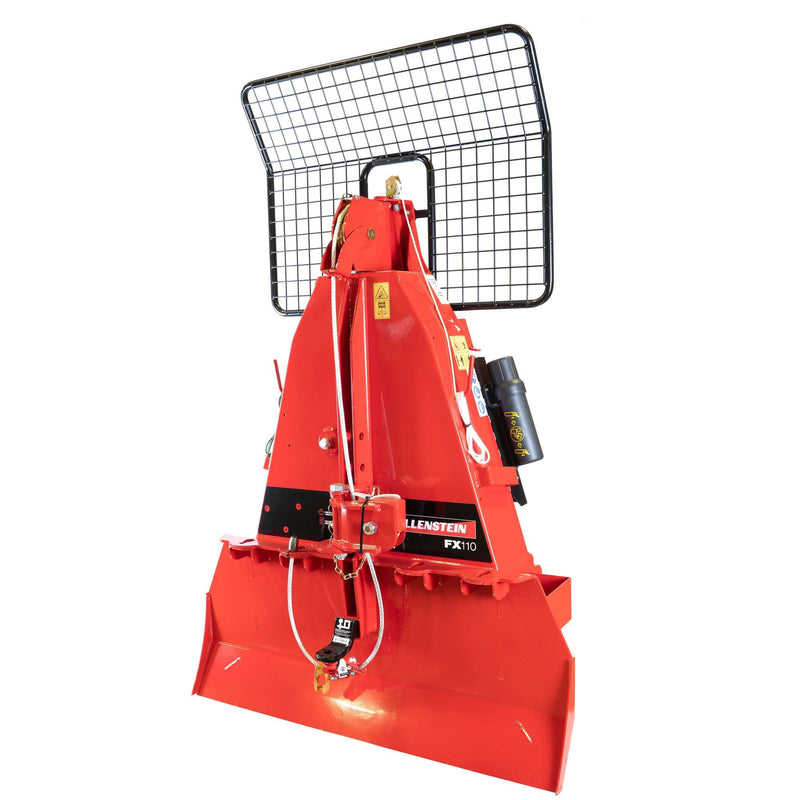

Wallenstein Equipment FX110 PTO‑Driven Skidding Winch

MPN: FX110-1

$6,710.00
Direct Shipment from Manufacturer
11000 lbs pulling capacity, the FX110 PTO driven skidding winch is perfect for managing your woodlot.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (307) 832-5565
Accepted Payment Methods:
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Shipping Policy | Return Policy | Warranty Info

11000 lbs pulling capacity, the FX110 PTO driven skidding winch is perfect for managing your woodlot. Reach the trees you need to pull, even on steep hills or swampland with ease.

FEATURES

  • 2 Choker Chains

Pull an additional two logs with the included steel choker chains.

  • 2 Keyhole Sliders

Coupled with the included choker chains, pull an additional two logs.

  • Removable Clutch Assembly

Easily service your winch with the removable clutch.

  • Rope Controlled brake/clutch system

  • Shearbolt Protected PTO Drivetrain Included

Move on from a power spike by simply replacing a single shear bolt.

  • Snatch Block Pulley System

Adjust the pull angle for maximum stability in all pulling situations.

  • Tow Bar

Complete with keyhole slots to hook up choker chains for skidding logs out of the bush.

  • Trailer Hitch

Allows you to hook onto a trailer without detaching the winch.

SPECIFICATIONS

Specification Details
Pulling Capacity 11,000 lbs (4,989 kg)
Engine HP Range 50 - 90
Winch Type Mechanical, Dry Disc Clutch
Line Speed 98 - 253 ft/min (30 - 77 m/min)
Cable Type Steel
Cable Length 165' (50 m)
Cable Diameter 7/16" (11 mm)
Choker Chains 2
PTO Input Speed 540 rpm
PTO Height 21" (53 cm)
Total Weight 796 lbs (361 kg)
Dimensions (LxWxH) 28" x 51" x 79" (71 cm x 130 cm x 201 cm)
Mounting System Cat I & Cat II
