Wallenstein Equipment WX330 25‑Ton Horizontal Tractor Log Splitter - Iron Elk

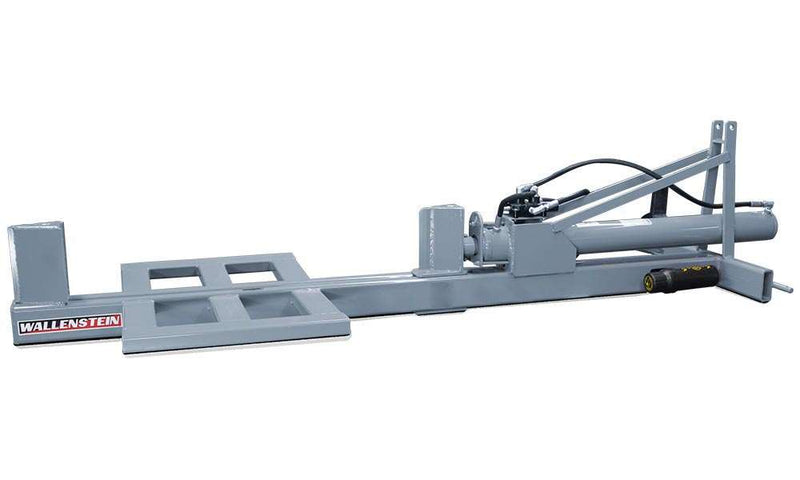

Wallenstein Equipment WX330 25‑Ton Horizontal Tractor Log Splitter

by Wallenstein Equipment
$3,590.00 - $3,590.00
$3,590.00
$3,590.00 - $3,590.00
$3,590.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

25 ton split force, the WX330 horizontal 3-point hitch hydraulic log splitter is designed with a wide wedge which makes that wood block pop" early in the split process. Ideal for those who have a compact tractor and want split wood up to 48" long for your outdoor wood furnace.

FEATURES

  • Direct Pressure

Full splitting force is always applied because the cylinder is directly inline with the log, powering through the toughest wood with ease.

  • Grip-Strip Stop Block

Engineered to support an enhanced split action

  • Hands Free Return

Switched to reverse, the wedge returns to the start position hands free and then automatically clicks back to neutral.

  • Wide log shelves

Wide shelves help keep logs in place while splitting.

  • Wide Wedge

Wide wedge spreads and pops the log in a short distance, reducing cycle time.

SPECIFICATIONS

Feature Specification
Split Force 25 Ton
Recommended Hydraulic Flow 13 gpm (50 lpm)
Split Opening 48″ (122 cm)
Orientation Horizontal
Average Splitter Cycle Time 15.24 Seconds (depends on tractor hydraulic flow)
Full Cycle Time 30.48 Seconds (depends on tractor hydraulic flow)
Cylinder Diameter 4.5″ (11 cm)
Wedge Height 10″ (25 cm)
Includes Hydraulic Hoses & Couplers Yes
Total Weight 425 lb (193 kg)
Dimensions (L × W × H) 120″ × 30″ × 24″ (305 × 77 × 61 cm)
Mounting System Cat I, iMatch™ & Quick Hitch Compatible



SHIPPING & SUPPORT

This product ships directly from Wallenstein Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
