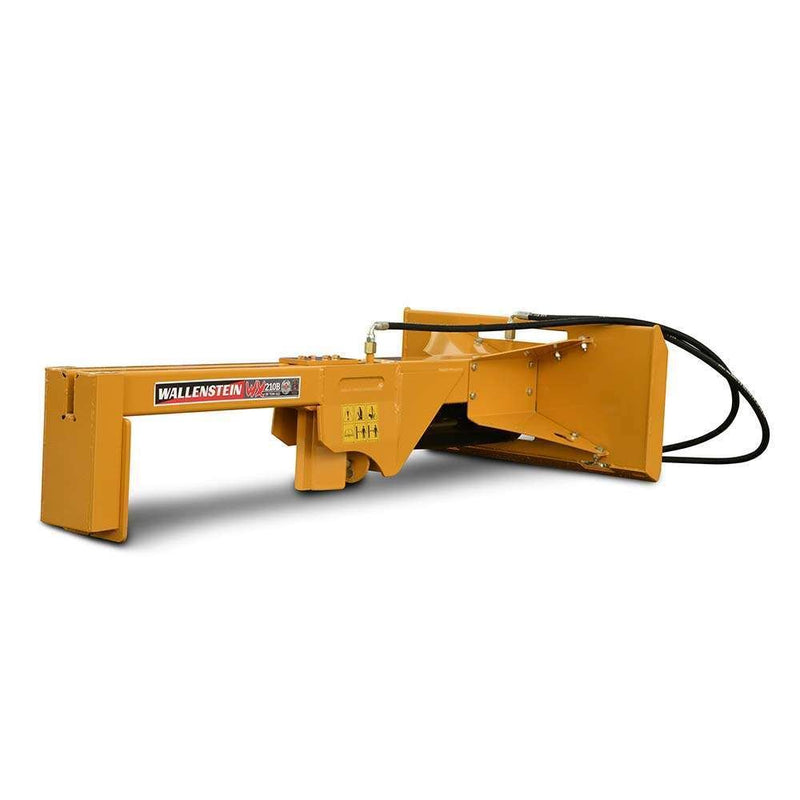

Wallenstein Equipment WX210B 20‑Ton Inverted Horizontal Skid‑Steer Log Splitter

by Wallenstein Equipment
$2,340.00 - $2,340.00
$2,340.00
$2,340.00 - $2,340.00
$2,340.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

20 ton split force, your WX210B (Bobcat) inverted horizontal mini skidsteer driven log splitter is designed to grab the blocked pieces and split with the wide wedge which makes that wood block "pop" early in the split process. Operated from the mini skidsteer controls, there is no need to bend over and load logs onto the splitting bed. Great for use on your rural and woodlot properties, this splitter is built for everyday use.

FEATURES

  • Direct Pressure

Full splitting force is always applied because the cylinder is directly inline with the log, powering through the toughest wood with ease.

  • Block Stripper Plates

Easily remove gnarly blocks that stick to the splitting wedge.

  • Skidsteer Mount

The universal quick attach plate connects easily to most skidsteers.

  • Wide Wedge

Wide wedge spreads and pops the log in a short distance, reducing cycle time.

SPECIFICATIONS

Feature Specification
Split Force 20 Ton
Required Hydraulic Flow 10 gpm (38 lpm)
Split Opening 24″ (61 cm)
Orientation Inverted Horizontal
Average Splitter Cycle Time 6.62 Seconds (depends on mini skid‑steer flow)
Full Cycle Time 13.24 Seconds (depends on mini skid‑steer flow)
Cylinder Diameter 4″ (10 cm)
Wedge Height 9″ (23 cm)
Includes Hydraulic Hoses & Couplers Yes
Total Weight 381 lb (173 kg)
Dimensions (L × W × H) 73″ × 36″ × 19.5″ (185 × 91 × 50 cm)
Mounting System Mini skid‑steer mounting plate (Bobcat-ready)



SHIPPING & SUPPORT

This product ships directly from Wallenstein Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
