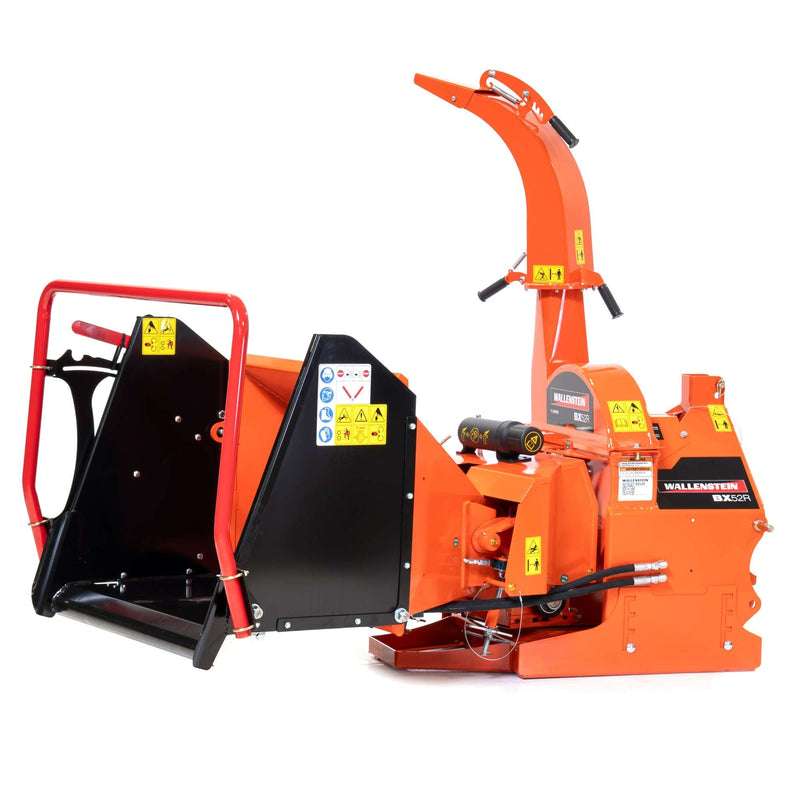

Wallenstein Equipment BX52R Tractor - Mounted Hydraulic Wood Chipper - Iron Elk

Wallenstein Equipment BX52R Tractor-Mounted Hydraulic Wood Chipper

by Wallenstein Equipment
$8,950.00 - $8,950.00
$8,950.00
$8,950.00 - $8,950.00
$8,950.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

5" chipping capacity, the BX52R PTO driven wood chipper will handle all your rural and fence line property projects. The two feed rollers are driven by two hydraulic motors dialed in to your desired roller speed. This keeps the oversized heavy duty rotor spinning and processing through all your wood and brush piles.

FEATURES

  • Adjustable Discharge Chute

Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.

    • Adjustable Ski Base

    Adjust the chipper height to match the PTO height on your tractor.

      • Dual Driven Hydraulic Rollers

      Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.

      • Fold Up Feed Hopper - No Tools

      For easy transport. No tools required.

      • Oversized Heavy Duty Rotor

      Extra large chipper intake backed up by extra large rotor spinning with high momentum.

      • Positional Discharge Deflector

      The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired.

      • Reversible Rotor Knives

      Standard reversible rotor knives double the longevity of your knives.

      • Safety Control Bar

      Forward/reverse control with two stop positions.

      • Shearbolt Protected PTO Drivetrain Included

      Move on from a power spike by simply replacing a single shear bolt.

      • Twig Breaker

      The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.

      • Wide Infeed Opening

      Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required.

      SPECIFICATIONS

      Specification Details
      Chipping Capacity 5″ (13 cm)
      Tractor HP Range 40–55 hp
      Feed System Dual Hydraulic Roller
      Chipper Type Disc
      Required Hydraulic Flow 3–6 gpm (12–23 lpm)
      Hopper Opening 35″ × 30″ (89 cm × 76 cm)
      Infeed Opening 5″ × 10″ (13 cm × 26 cm)
      Number of Chipper Knives 4
      Rotor Diameter 25″ (63 cm)
      Rotor Weight 125 lb (57 kg)
      Discharge Chute Height 74″ (188 cm), 360° rotation
      Drive System PTO Direct Drive
      Rated PTO Speed 540–1000 RPM
      PTO Height Compatibility 22″–27″ (55–69 cm)
      Total Weight 845 lb (384 kg)
      Dimensions (Open L×W×H) 80″ × 67″ × 74″ (204 × 171 × 188 cm)
      Dimensions (Folded L×W×H) 62″ × 61″ × 74″ (158 × 155 × 188 cm)
      Mounting System Cat I, iMatch™ & Quick Hitch compatible



      SHIPPING & SUPPORT

      This product ships directly from Wallenstein Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

      Have questions or need help choosing the right size or accessories?
      Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
