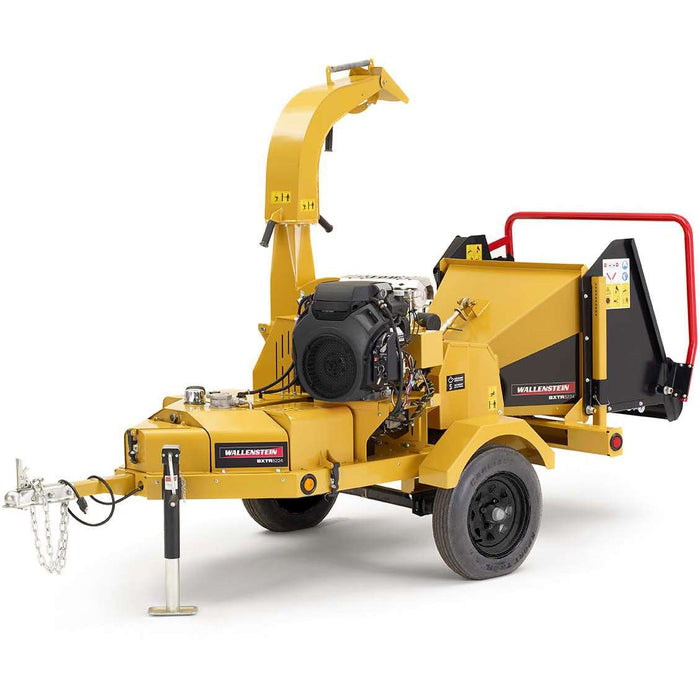

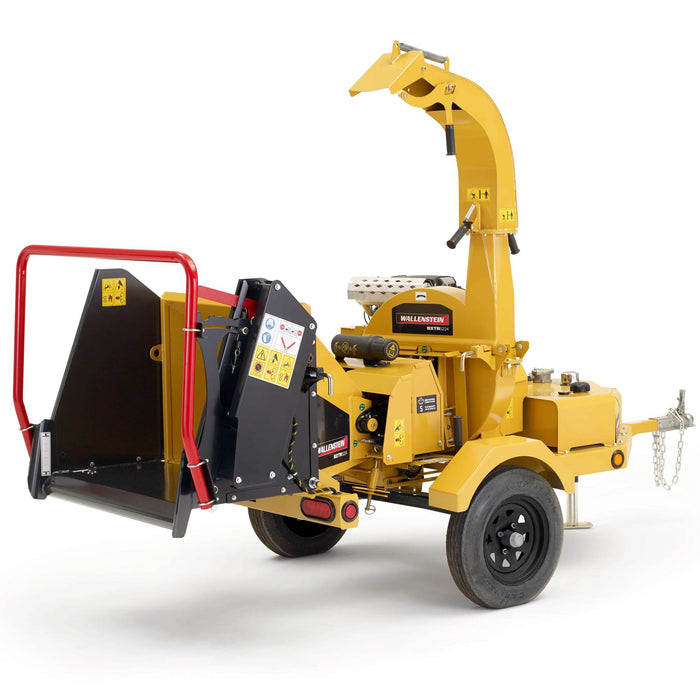

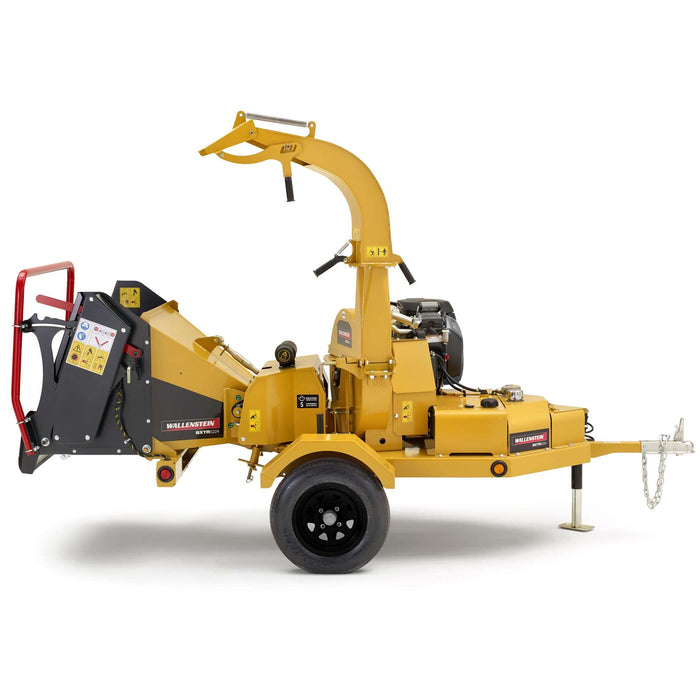

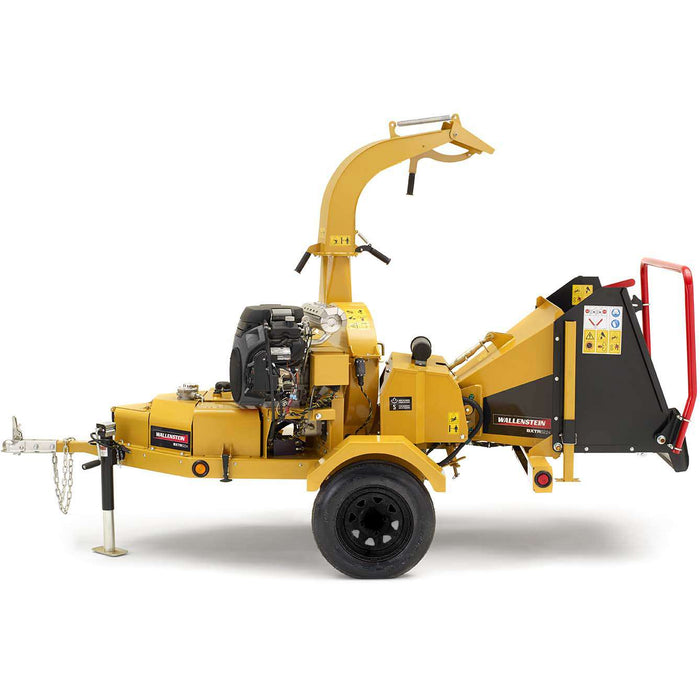

Wallenstein Equipment BXTR5224 Towable Hydraulic Wood Chipper

by Wallenstein Equipment
$18,600.00 - $18,600.00
$18,600.00
$18,600.00 - $18,600.00
$18,600.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

5" chipping capacity, the BXTR5224 towable wood chipper will handle all your rural property and commercial landscaping projects. The two feed rollers are driven by two hydraulic motors and matched with automatic roller speed control. This keeps the oversized heavy duty rotor spinning and processing through all your wood and brush piles.

FEATURES

  • Adjustable Discharge Chute

Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.

    • Built In Toolbox

    Keep your small tools and replacement parts handy.

    • Dual Driven Hydraulic Rollers

    Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.

    • Electric Start

    Reliable and convenient starting at the turn of a key.

    • Fold Up Feed Hopper - No Tools

    For easy transport. No tools required.

    • Highway Towable

    Transport your unit with hitch, safety chains, highway tires, and full trailer lighting.

    • Oversized Heavy Duty Rotor

    Extra large chipper intake backed up by extra large rotor spinning with high momentum.

    • P3 Pulse

    The P3 Pulse controller is designed to enhance the machines power, performance, and productivity.

    • Positional Discharge Deflector

    The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired.

    • Reversible Rotor Knives

    Standard reversible rotor knives double the longevity of your knives.

    • Safety Control Bar

    Forward/reverse control with two stop positions.

    • Torflex® Suspension Axle

    Axles are designed to absorb road impact, providing a smoother towing experience.

    • Twig Breaker

    The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.

    • Wide Infeed Opening

    Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required.

    SPECIFICATIONS

    Specification Details
    Chipping Capacity 5" (13 cm)
    Engine Vanguard® 23 hp (627 cc) EFI
    Feed System Dual Hydraulic Roller
    On-Board Intelligence P3 Pulse™
    Chipper Type Disc
    Max. Feed Rate 85 fpm (26 mpm)
    Hopper Opening 24" x 35" (61 cm x 89 cm)
    Infeed Opening 5.25" x 9" (13 cm x 23 cm)
    Number of Chipper Knives 2
    Rotor Diameter 25" (64 cm)
    Rotor Weight 117 lbs (53 kg)
    Discharge Chute Height 80" (203 cm)
    Discharge Chute Rotation 360°
    Drive System Centrifugal Clutch, Belt Drive
    Engine Speed 3600 RPM
    Rotor Speed 1340 RPM
    Tires 5.30-12
    Hitch 2" Ball
    Electric Brakes No
    Tongue Weight 90 lbs
    Total Weight 1425 lbs (646 kg)
    Dimensions (Open) 126" x 54" x 80" (320 x 137 x 203 cm)
    Dimensions (Folded) 107" x 54" x 80" (272 x 137 x 203 cm)
    Hydraulic Capacity 5 US gal (19 L)
    Fuel Tank Capacity 6.5 US gal (25 L)



    SHIPPING & SUPPORT

    This product ships directly from Wallenstein Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

    Have questions or need help choosing the right size or accessories?
    Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
