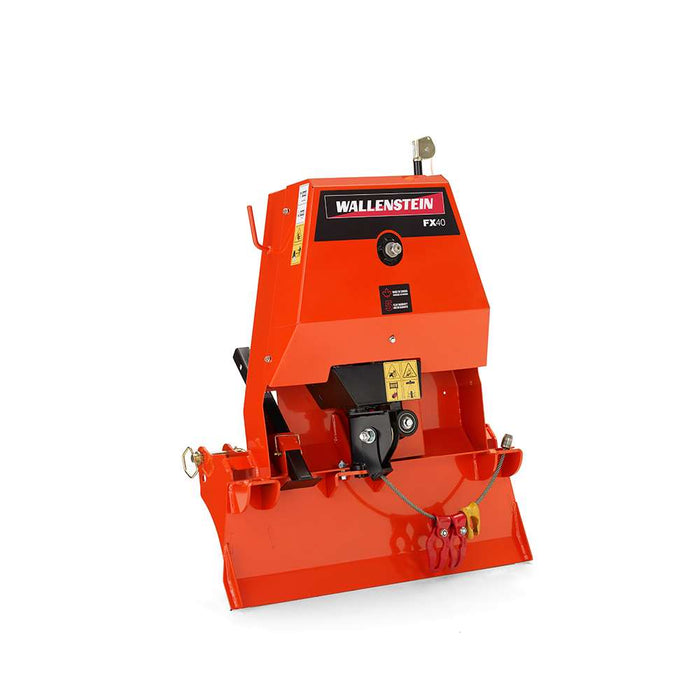

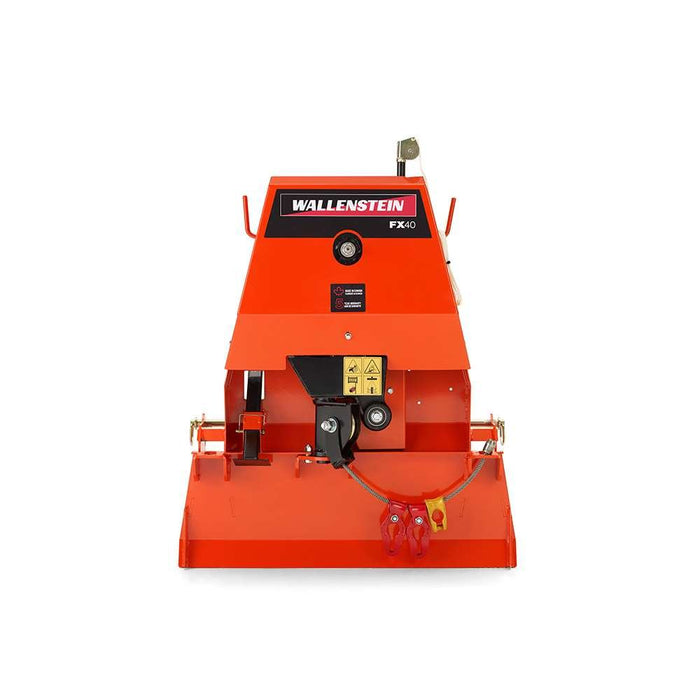

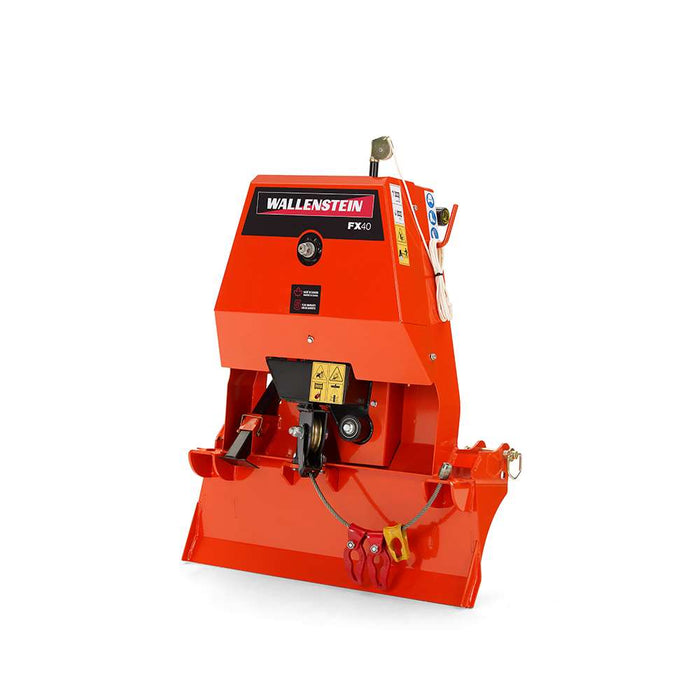

Wallenstein Equipment FX40 PTO-Driven Skidding Winch

by Wallenstein Equipment
$4,330.00 - $4,330.00
$4,330.00
$4,330.00 - $4,330.00
$4,330.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

4000 lbs pulling capacity, the FX40 PTO driven skidding winch is perfect for managing your woodlot. Reach the trees you need to pull, even on steep hills or swampland with ease.

FEATURES

  • 2 Choker Chains

Pull an additional two logs with the included steel choker chains.

  • 2 Keyhole Sliders

Coupled with the included choker chains, pull an additional two logs.

  • Removable Clutch Assembly

Easily service your winch with the removable clutch.

  • Rope Controlled brake/clutch system

  • Shearbolt Protected PTO Drivetrain Included

Move on from a power spike by simply replacing a single shear bolt.

  • Snatch Block Pulley System

Adjust the pull angle for maximum stability in all pulling situations.

  • Tow Bar

Complete with keyhole slots to hook up choker chains for skidding logs out of the bush.

SPECIFICATIONS

Specification Details
Pulling Capacity 4000 lb (1814 kg)
Engine HP Range 12 - 30
Winch Type Mechanical, Dry Disc Clutch
Line Speed 103 - 290 ft/min (31 - 88 m/min)
Cable Type Steel
Cable Length 165' (50 m)
Cable Diameter 3/8" (10 mm)
Choker Chains 2
PTO Input Speed 540 rpm
PTO Height 16" (41 cm)
Total Weight 280 lb (127 kg)
Dimensions (LxWxH) 17" x 36" x 45" (43 cm x 91 cm x 114 cm)
Mounting System Cat I



SHIPPING & SUPPORT

This product ships directly from Wallenstein Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
