Wallenstein Equipment LXG430RP – 4,500 lb Hydraulic Rotator Grapple with Winch & Extendable Boom - Iron Elk

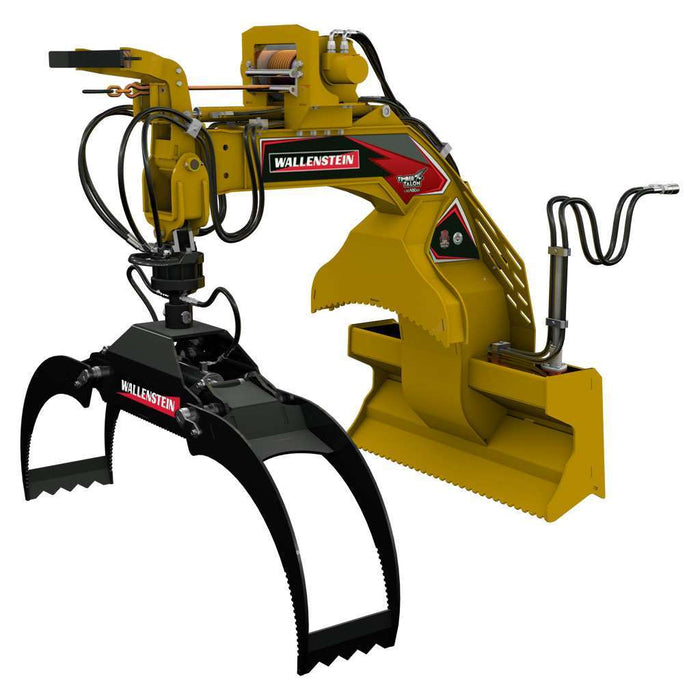

Wallenstein Equipment LXG430RP – 4,500 lb Hydraulic Rotator Grapple with Winch & Extendable Boom

by Wallenstein Equipment
$19,660.00 - $19,660.00
$19,660.00
$19,660.00 - $19,660.00
$19,660.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

Engineered for serious forestry applications, the LXG430RP is a rugged skid-steer grapple that combines powerful lift, precise rotator control, a built-in winch, and a 2 ft extendable boom—delivering unmatched versatility in log handling, loading, and yard cleanup.

FEATURES

  • 360° Hydraulic Rotation

Pick up logs in any position and orient them exactly where you want.

  • Bypass Grapples

Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.

  • Cantilever Cradle

Leverage and secure your load with the serrated cradle when lifting logs in-line.

  • Extendible Boom

Gain additional reach capacity by extending the boom.

  • Hydraulic Warn Winch

Plenty of winching power at your disposal to help retrieve stubborn logs.

  • Push Bar

Control what is happening in front of you by forcing trees to fall away from your tractor or skidsteer.

SPECIFICATIONS

Specification Details
Lift Capacity 4,500 lbs (2,041 kg)
Engine HP Range 70 – 100 hp
Recommended Hydraulic Flow 10 gpm (38 lpm)
Grapple Opening 3″ – 72″ (8 cm – 182 cm)
Grapple Rotation 360°
Clamp Force 21,000 lbs (9,525 kg)
Extendable Boom 24″ (61 cm)
Push Bar Width 19″ (48 cm)
Winch Pulling Capacity 9,000 lbs (4,082 kg)
Winch Rope Length 100′ (30 m)
Includes Hydraulic Hoses & Couplers Yes
Total Weight 1,444 lbs (655 kg)
Dimensions (L × W × H) 67″ × 76″ × 70″ (171 × 193 × 178 cm)
Mounting System Universal Skid-Steer Quick Attach Plate



SHIPPING & SUPPORT

This product ships directly from Wallenstein Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
