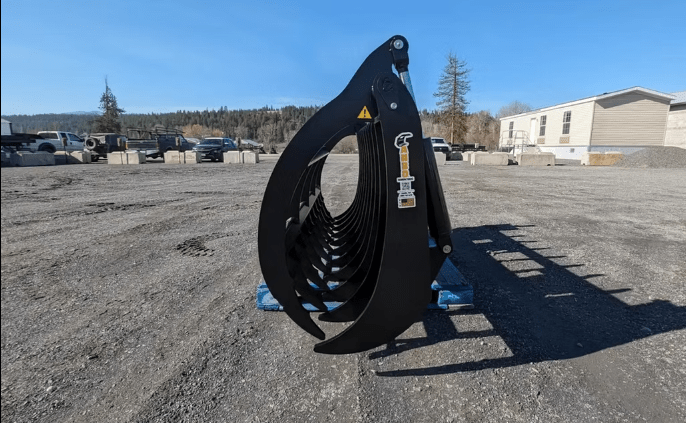

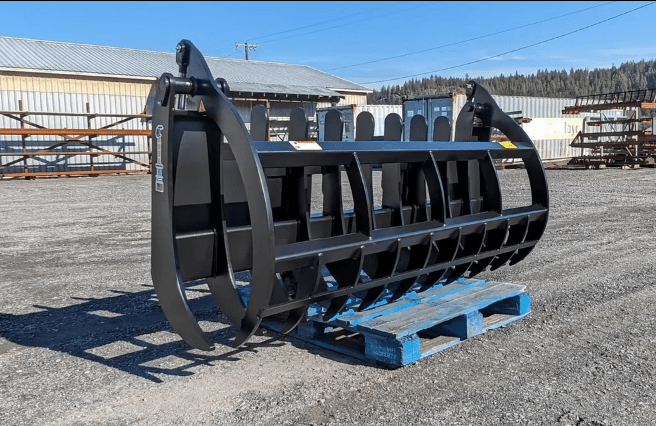

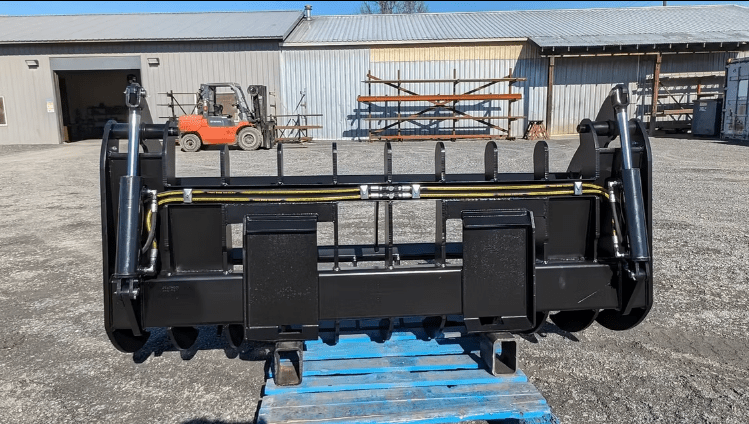

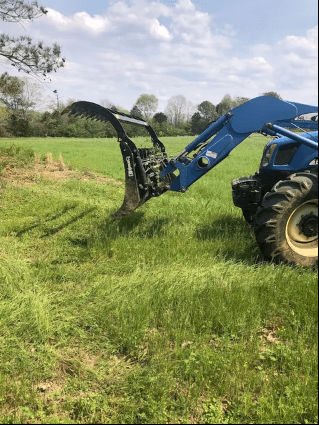

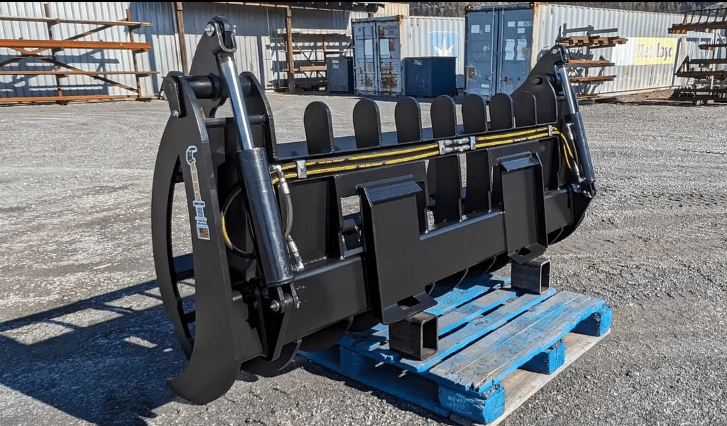

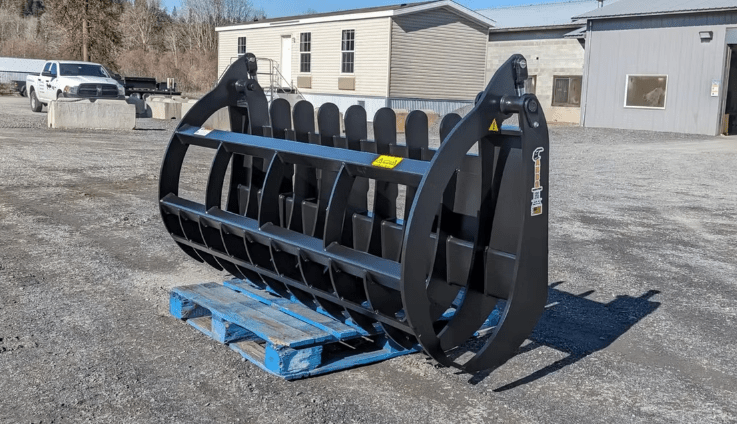

ANBO Grapple Rake 160 For Skid Steers and Tractors

The ANBO GR160 is built to handle the toughest jobs — land clearing, rock work, stump and root removal, and debris handling — all while being sized for machines rated up to 160 horsepower. With its robust AR400F steel construction, clamshell design, and substantial hydraulic capability, the GR160 excels in demanding work environments.

FEATURES

• Built with AR400F Steel
  All tines and structural components use AR400F alloy steel, delivering significantly better wear resistance and durability than conventional steel.
• Thick Outer / Inner Tines
  Standard versions use ¾" outer / 5⁄8" inner tines to resist bending and fatigue under heavy loads.

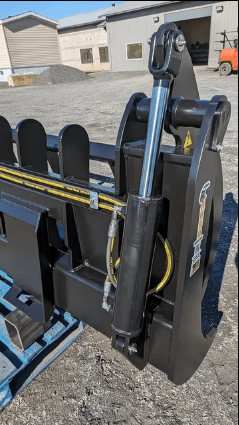

• Powerful Hydraulic Cylinders (3" × 10")
  Equipped with 3" × 10" cylinders that provide strong closing force and control, even under heavy material loads.
• 58" Opening (Standard across Variants)
  The grapple’s jaw opens approximately 58" to accommodate large logs, brush, and bulky materials.
• Clamshell Grapple Design
  The dual-grapple arms apply even pressure across the load, improving grip and minimizing shifting during handling.
• Greaseable Pivot Points & Secure Hose Routing
  All hinge points are serviceable with grease fittings, and hoses are routed cleanly to reduce interference and abrasion risk.
• Versatile Root-Rake Capability
  Though heavy-duty, the GR160 is built “short tines” style (similar to a root rake) making it effective for digging or raking roots and debris in the soil.
• Made in USA & Warranty Support
  Manufactured in Colville, Washington, with a 2-year general warranty and 3-year cylinder warranty for added assurance.

SPECIFICATIONS

SHIPPING & SUPPORT

This product ships directly from ANBO Manufacturing U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.
