Wallenstein Equipment GE605 Backhoe Attachment For Compact Tractors - Iron Elk

Wallenstein Equipment GE605 Backhoe Attachment For Compact Tractors

by Wallenstein Equipment
$7,100.00 - $7,100.00
$7,100.00
$7,100.00 - $7,100.00
$7,100.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

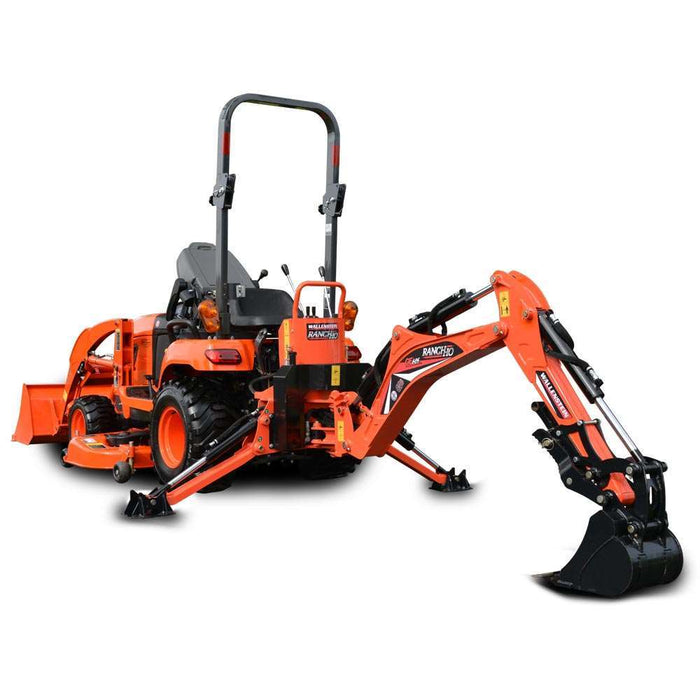

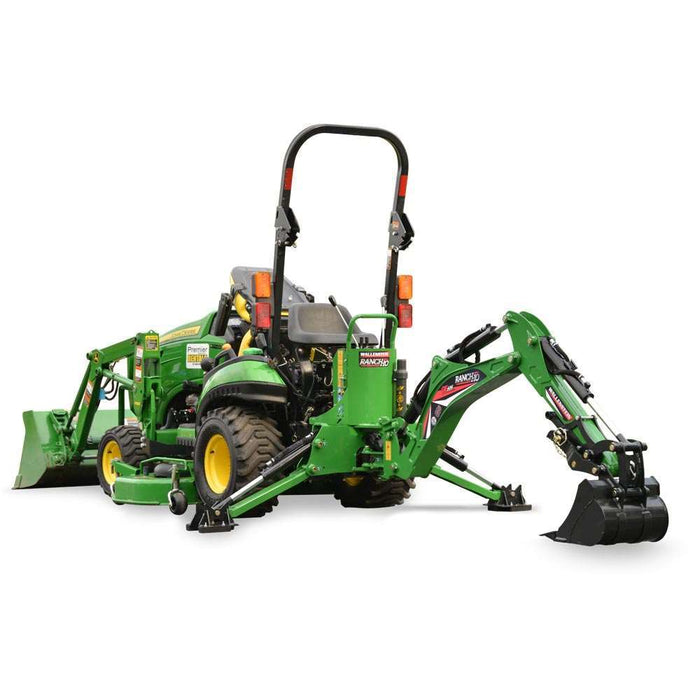

6' 4" digging depth, the GE605 backhoe can mount on your tractor to handle any landscaping or dirt excavating job. For rural property owners, farmers or small businesses, this rugged backhoe is ready to sink its teeth into any task you give it.

FEATURES

  • Curved Boom

Protects backhoe from unnecessary damage while preventing ground from falling back into the hole.

  • Greaseable Pins

Maintenance is easy with greasable pins on all pivot points.

  • Hydraulic Stabilizers

Easy to use hydraulic stabilizers help to prevent tipping.

  • Replaceable Teeth

Our pin-on bucket teeth allow you to swap out worn or damaged teeth and get back to work as soon as possible.

  • Subframe Mounting

Allows your tractor to safely handle the stresses developed by digging with a backhoe attachment.

  • Swing Cushioning

When swinging the boom to the extreme ends, hydraulic cushioning gracefully brings the boom to a controlled stop.

SPECIFICATIONS

Specification Details
Digging Depth 6' 4" (193 cm)
Engine HP Range (Tractor) 15 - 35
Required Hydraulic Flow 4 - 12 gpm (15 - 45 lpm)
Stabilizer Width (Spread) 72" (183 cm)
Main Boom Cylinder Diameter 2.5" (64 mm)
Dipper Cylinder Diameter 2.25" (57 mm)
Bucket Cylinder Diameter 2" (51 mm)
Number of Swing Cylinders 1
Swing Cylinder Diameter 2.5" (64 mm)
Stabilizer Cylinder Diameter 2" (51 mm)
Reach from Swing Post 100" (254 cm)
Includes Flow Divider No
Bucket Rotation 180°
Swing Arc 150°
SAE Dipper Boom Digging Force* 1250 lbs (567 kg)
SAE Bucket Digging Force* 2054 lbs (932 kg)
Boom Lift Capacity 250 lbs (113 kg)
Ground Clearance 8.5" (22 cm)
Loading Height 62" (158 cm)
Overall Operating Height (Fully Raised) 91" (231 cm)
Includes Hydraulic Hoses and Couplers Yes
Total Weight 500 lbs (227 kg)
Transport Dimensions (L x W x H) 56" x 41" x 65" (142 cm x 104 cm x 165 cm)
Operating Pressure 1800 psi (12411 kPa)
Mounting System Subframe



SHIPPING & SUPPORT

This product ships directly from Wallenstein Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at  sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
