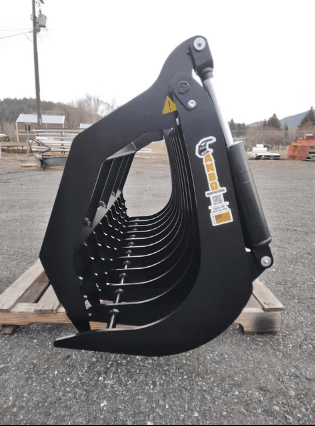

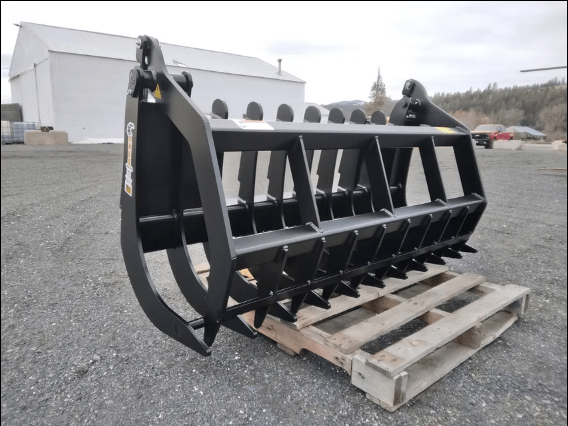

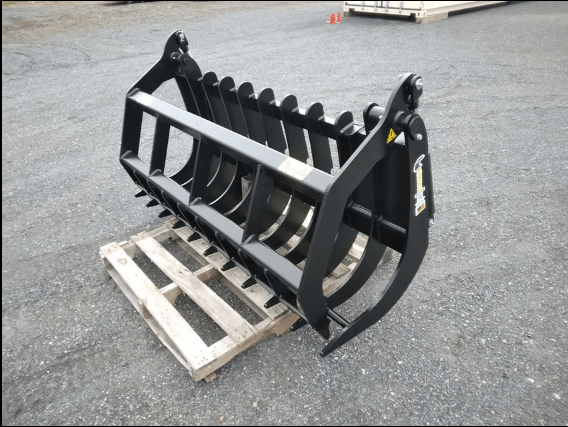

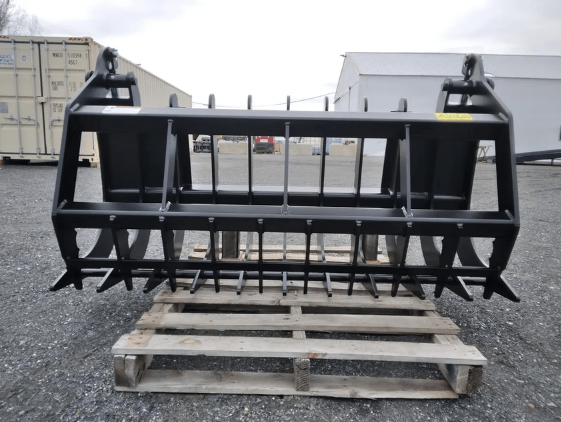

ANBO Grapple Rake 75 High Capacity For Skid Steers and Tractors

by ANBO Manufacturing
$5,410.00 - $7,640.00
$5,850.00
$5,410.00 - $7,640.00
$5,850.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

The GR75HC (High Capacity) is a beefed-up version of ANBO’s 75 HP grapple line, engineered for operators who want extra payload on their smaller machines. With longer bottom tines, a larger closed-gap volume, and a wider opening, this grapple rake excels in handling heavy brush, logs, roots, and debris while staying within the limits of smaller tractors and skid steers.

Built from AR400F steel and backed by a 2-year structural warranty (3 years on cylinders), the GR75HC delivers both strength and peace of mind.

FEATURES

  • High-Capacity Design
    Longer tines and increased clearance when closed allows the GR75HC to carry more material per load than standard 75 HP grapples.
  • Heavy-Duty Tines
    Constructed with ½″ AR400F steel on both outer and inner tines to resist abrasion under load.
  • Multiple Cylinder Options
    Equipped with 2.5″ × 8″ or 3″ × 8″ hydraulic cylinders (based on width) to deliver strong clamping force.
  • Wide Range of Widths & Tine Spacing
    Available in both 6″ and 8″ tine spacing across widths from 59″ up to 94″, giving flexibility for many machine setups and material types.
  • Generous Jaw Opening
    Offers a ~50″ opening to uptake large logs, brush bundles, or root masses.
  • Greaseable Pivots & Protected Hoses
    All pivot points include grease lubrication, and hydraulic hoses are routed securely to reduce wear and snags.
  • Made in the USA with AR400F Steel
    Fabricated in the U.S. from AR400F alloy — up to 5x stronger than conventional grade-36 steel.
  • Warranty Coverage
    Comes with a 2-year structural warranty, and a 3-year warranty on cylinders to protect your investment.

SPECIFICATIONS

SKU Tine Space Width Weight Max HP Tine Size (Outer : Inner) Opening Cylinders
GR75HC 6" 59" 732 lb 75 hp 1/2" : 1/2" 50" 2.5" x 8"
GR75HC 6" 66" 790 lb 75 hp 1/2" : 1/2" 50" 2.5" x 8"
GR75HC 6" 72" 852 lb 75 hp 1/2" : 1/2" 50" 3" x 8"
GR75HC 6" 79" 906 lb 75 hp 1/2" : 1/2" 50" 3" x 8"
GR75HC 6" 85" 960 lb 75 hp 1/2" : 1/2" 50" 3" x 8"
GR75HC 6" 92" 1019 lb 75 hp 1/2" : 1/2" 50" 3" x 8"
GR75HC 8" 60" 691 lb 75 hp 1/2" : 1/2" 50" 2.5" x 8"
GR75HC 8" 66" 754 lb 75 hp 1/2" : 1/2" 50" 2.5" x 8"
GR75HC 8" 77" 823 lb 75 hp 1/2" : 1/2" 50" 3" x 8"
GR75HC 8" 86" 885 lb 75 hp 1/2" : 1/2" 50" 3" x 8"
GR75HC 8" 94" 952 lb 75 hp 1/2" : 1/2" 50" 3" x 8"



SHIPPING & SUPPORT

This product ships directly from ANBO Manufacturing U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
