ANBO Grapple Rake 60 For Skid Steers and Tractors - Iron Elk

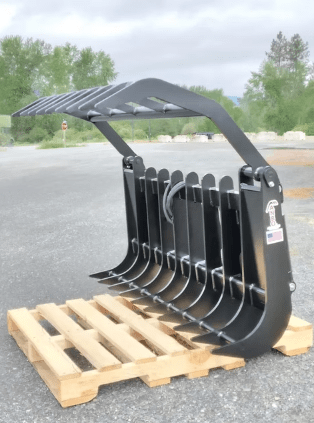

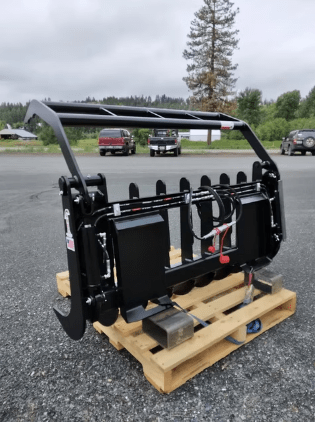

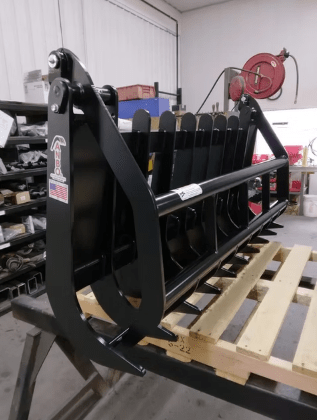

ANBO Grapple Rake 60 For Skid Steers and Tractors

by ANBO Manufacturing
$4,390.00 - $5,870.00
$4,390.00
$4,390.00 - $5,870.00
$4,390.00

Authorized Dealer for Loflin Fabrication

Ensuring quality backed by full manufacturer warranty & support.

FREE Ground Shipping: 7-10 business days

Shipping times may vary depending on seasonality and product availability. For a precise estimated ship date, please contact us at(301) 200-2113or emailsupport@landbossequipment.com.

Request a quote

The ANBO GR60 Grapple Rake is engineered to meet the demands of rugged land clearing, debris sorting, and site prep work. Tailored for tractors, loaders, and skid steers up to 60 horsepower, the GR60 offers a perfect balance of strength, efficiency, and operational capacity. With its larger opening, thicker tines, and robust hydraulics, it is built to handle tougher loads than lighter models.

FEATURES

  • AR400F Alloy Steel Construction
    Built from high-strength AR400F steel for outstanding tensile strength, yield, and hardness—resulting in superior wear resistance compared with conventional steels.
  • Thicker Outer & Inner Tines
    Uses ½" outer / ⅜" inner tine thickness, designed to resist bending or fatigue under heavier loads.
  • Wide Opening & Large Grapple Stroke
    Offers an opening of about 43 inches (depending on width variant) for handling bulky brush, logs, and debris.
  • Clamshell Grapple Design
    Dual-grapple arms operate smoothly to clamp down evenly across the load, providing secure grip during transport or dumping.
  • 2" × 6" Hydraulic Cylinders
    Integrated heavy-duty cylinders provide sufficient clamping force to handle dense brush, roots, and mixed debris.

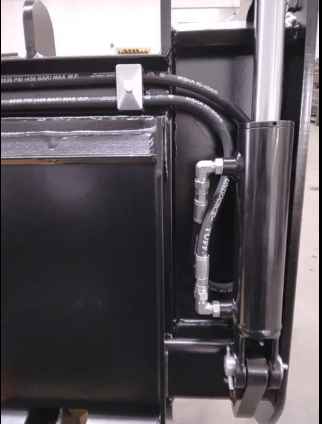

  • Greaseable Pivot Points & Protected Hose Routing
    Pivot pins and joints are serviceable for extended life. Hydraulic hoses are routed to minimize snagging and protect during operation.
  • Multiple Width Options (58" to 96")
    Available in a variety of widths to match machine and task requirements — suitable for clearing wide swaths or tight corridors.
  • Optimized for 60 HP Machines
    Designed to work effectively with machines rated at or below 60 horsepower, ensuring compatibility without overloading.
  • Open-Bottom Design for Debris Flow
    Soil, small rocks, and fine material pass through the bottom while logs and larger debris are retained, reducing load weight and improving efficiency.
  • USA Manufactured with Full Warranty Support
    Fabricated in the U.S. with quality checks and backed by manufacturer support for defects and reliability.

SPECIFICATIONS

SKU Tine Spacing Width Weight Max HP Tine Size (Outer : Inner) Opening Cylinders
GR60 6" 58" 436 lb 60 hp 1/2" : 3/8" 43" 2" x 6"
GR60 6" 64" 466 lb 60 hp 1/2" : 3/8" 43" 2" x 6"
GR60 6" 71" 496 lb 60 hp 1/2" : 3/8" 43" 2" x 6"
GR60 6" 77" 526 lb 60 hp 1/2" : 3/8" 43" 2" x 6"
GR60 6" 84" 556 lb 60 hp 1/2" : 3/8" 43" 2" x 6"
GR60 6" 90" 586 lb 60 hp 1/2" : 3/8" 43" 2" x 6"
GR60 6" 96" 616 lb 60 hp 1/2" : 3/8" 43" 2" x 6"



SHIPPING & SUPPORT

This product ships directly from ANBO Manufacturing U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
