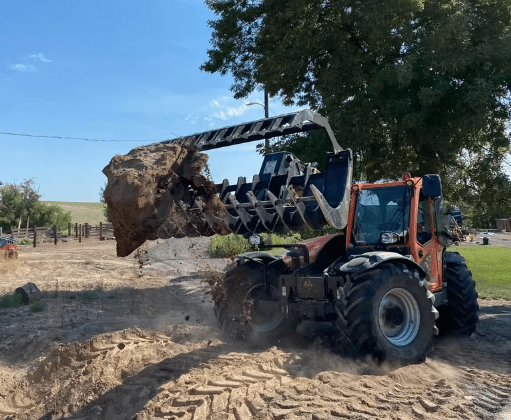

ANBO Grapple Rake 180 High Capacity For Skid Steers and Tractors

Push the limits of productivity with the ANBO GR180HC High Capacity Grapple Rake — designed for machines up to 180 HP, this rugged attachment is engineered to move more in every pass. With thicker tines, deeper reach, and broader capacity, the GR180HC offers strength and efficiency for demanding land clearing, forestry, demolition, and material handling tasks. Built with American AR400F steel, this grapple combines durability and performance for long, reliable service.

Whether you’re handling logs, roots, brush, stumps, or debris, the GR180HC turns your machine into a high-output workhorse.

FEATURES

• Rated for 180 HP Machines
  Engineered for operators running mid-to-upper horsepower equipment — optimized to match your machine’s power without compromise.
• Thicker Tine Construction
  Built with ¾" AR400F steel tines for extra strength over lighter models — ideal for tougher loads and heavy-duty use.
• High Capacity Design
  Longer bottom tines, larger closing space, and wider opening allow you to carry more material per load, improving your cycle time and output.
• Powerful 3.5" × 10" Hydraulic Cylinders
  Provides firm, consistent clamping force to grab, hold, and move large, irregular materials with confidence.
• Versatile Width Options
  Offered in multiple widths (e.g. 75", 82", 89", 95", 102", 109", 116") to match your skid steer or loader size and maximize compatibility.
• Universal Tine Spacing
  With a ¾" : ¾" outer-to-inner tine configuration, this rake balances material grip with efficient throughput.
• Greaseable Pivots & Secure Hose Routing
  All pivot points come equipped with grease zerks for easy maintenance. Hydraulic lines are routed to protect against abrasion and damage.
• Made from American AR400F Steel
  Constructed entirely from AR400F, which offers significantly greater abrasion resistance compared to grade-36 steel — boosting longevity in harsh environments.
• Warranty Coverage
  Backed by a 2-year structural warranty and a 3-year warranty on cylinders, giving you peace of mind and protection on your investment.
• Multi-Purpose Utility
  Use it for clearing brush and debris, loading logs or firewood, removing roots and stumps, collecting rock & timber, and general site cleanup — a versatile tool for farms, forestry, residential, or commercial projects.

SPECIFICATIONS

SHIPPING & SUPPORT

This product ships directly from ANBO Manufacturing U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@ironelkequipment.com or call (307) 832-5565 — our team is here to help.
